Structural View Interior

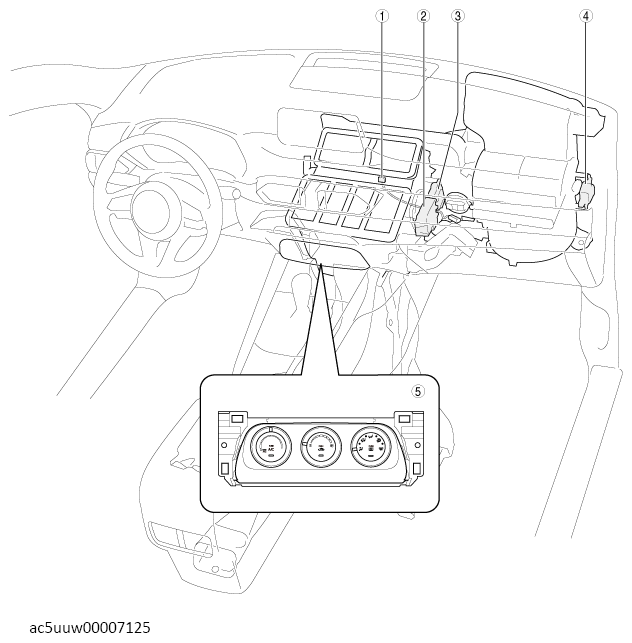

G14467850Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) ).
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION (MANUAL A/C) ).
2 Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL (MANUAL A/C) ).
(See AIRFLOW MODE ACTUATOR INSTALLATION (MANUAL A/C) ).
(See AIRFLOW MODE ACTUATOR INSPECTION (MANUAL A/C) ).
3 Air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) ).
(See AIR MIX ACTUATOR INSPECTION (MANUAL A/C) ).
4 Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (MANUAL A/C) ).
(See AIR INTAKE ACTUATOR INSPECTION (MANUAL A/C) ).
5 Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (MANUAL A/C) ).
(See CLIMATE CONTROL UNIT INSPECTION (MANUAL A/C) ).
