Front Door Trim Disassembly/Assembly: Driver-side

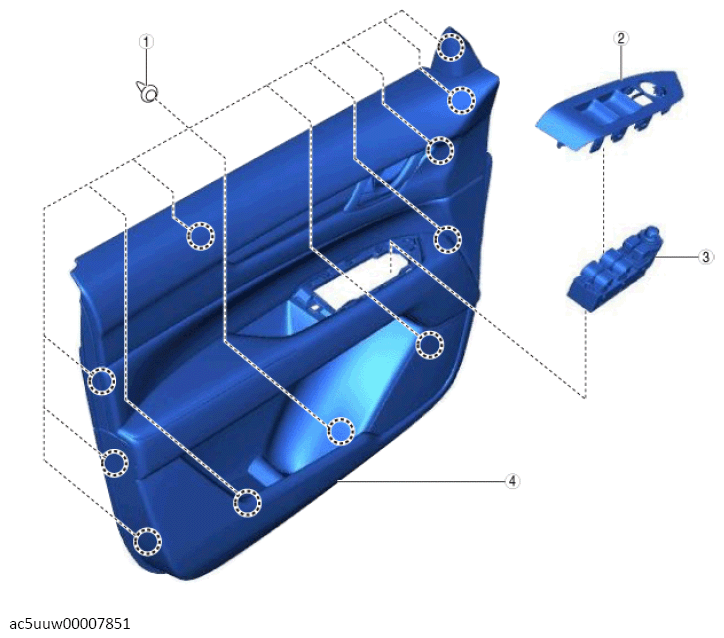

  1. Disassemble in the order shown in the figure.
    G14468631Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Fastener
    2 Power window main switch cover
    (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION ).
    3 Power window main switch
    (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION ).
    4 Front door trim
  2. Assemble in the reverse order of disassembly.
