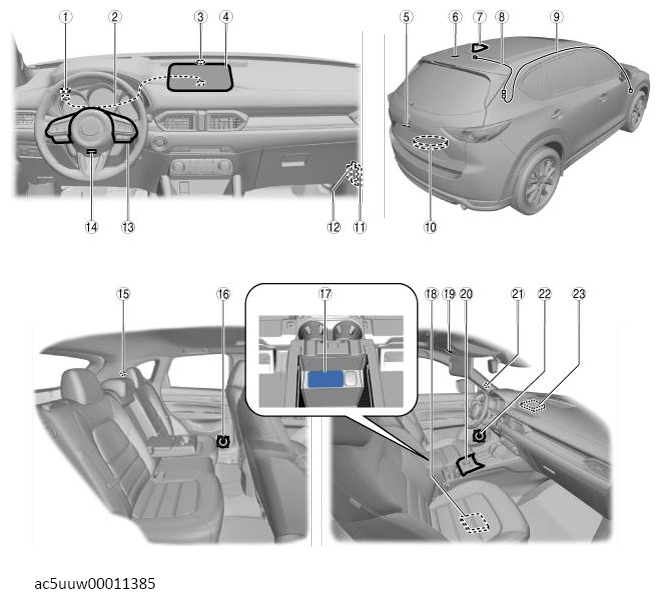

| 1 |
GPS antenna
(See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION ). |
| 2 |
GPS antenna feeder
(See GPS ANTENNA FEEDER REMOVAL/INSTALLATION ).
(See GPS ANTENNA FEEDER INSPECTION ). |
| 3 |
Front center speaker (with Bose ®)
(See FRONT CENTER SPEAKER REMOVAL/INSTALLATION ).
(See FRONT CENTER SPEAKER INSPECTION ). |
| 4 |
Center display
(See CENTER DISPLAY REMOVAL/INSTALLATION ).
(See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE ). |
| 5 |
Rear mount camera
(See REAR MOUNT CAMERA REMOVAL/INSTALLATION ).
(See REAR MOUNT CAMERA INSPECTION ). |
| 6 |
Condenser
(See CONDENSER REMOVAL/INSTALLATION ). |
| 7 |
Center roof antenna
(See CENTER ROOF ANTENNA REMOVAL/INSTALLATION ).
(See CENTER ROOF ANTENNA INSPECTION ). |
| 8 |
Antenna feeder No. 2
(See ANTENNA FEEDER NO. 2 REMOVAL/INSTALLATION ).
(See ANTENNA FEEDER NO. 2 INSPECTION ). |
| 9 |
Antenna feeder No. 1
(See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION ).
(See ANTENNA FEEDER NO. 1 INSPECTION ). |
| 10 |
Bass-box (with Bose ®)
(See BASS-BOX REMOVAL/INSTALLATION ).
(See BASS-BOX INSPECTION ). |
| 11 |
Tuner and amp unit (TAU) bracket (Type-A)
(See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION ). |
| 12 |
Tuner and amp unit (TAU) [(Type-A)]
(See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION [TYPE-A] ).
Remote tuner (RT) [(Type-B)]
(See REMOTE TUNER (RT) REMOVAL/INSTALLATION [TYPE-B] ).
(See REMOTE TUNER (RT) INSPECTION [TYPE B] ). |
| 13 |
Steering switch
(See STEERING SWITCH REMOVAL/INSTALLATION ).
(See STEERING SWITCH INSPECTION ). |
| 14 |
AudioPilot ® microphone (with Bose ®)
(See AudioPilot® MICROPHONE REMOVAL/INSTALLATION ). |
| 15 |
Rear speaker (with Bose ®)
(See REAR SPEAKER REMOVAL/INSTALLATION ).
(See REAR SPEAKER INSPECTION ). |
| 16 |
Rear door speaker
(See REAR DOOR SPEAKER REMOVAL/INSTALLATION ).
(See REAR DOOR SPEAKER INSPECTION ). |
| 17 |
Auxiliary jack/USB port/SD card slot hub (Type-A)
(See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION ).
(See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION ).
USB port/SD card slot hub (Type-B)
(See USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION ).
(See USB PORT/SD CARD SLOT HUB INSPECTION ). |
| 18 |
Audio amplifier (with audio amplifier)
(See AUDIO AMPLIFIER REMOVAL/INSTALLATION ). |
| 19 |
Microphone
(See MICROPHONE REMOVAL/INSTALLATION ). |
| 20 |
Commander switch
(See COMMANDER SWITCH REMOVAL/INSTALLATION ). |
| 21 |
Tweeter
(See TWEETER REMOVAL/INSTALLATION ).
(See TWEETER INSPECTION ). |
| 22 |
Front door speaker
(See FRONT DOOR SPEAKER REMOVAL/INSTALLATION ).
(See FRONT DOOR SPEAKER INSPECTION ). |
| 23 |
Connectivity master unit (CMU)
(See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION ).
(See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY ).
(See Bluetooth® PAIRING PROCEDURE ).
(See MAINTENANCE MONITOR OPERATION PROCEDURE ). |
