AudioPilot® MICROPHONE REMOVAL/INSTALLATION

NOTE:
  • AudioPilot®is a registered trademark of Bose®Corporation.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Disconnect the connector.

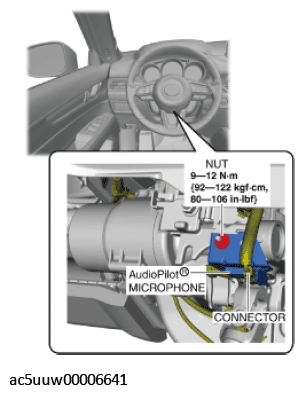

    Fig 1: AudioPilot® Microphone Nuts With Torque Specification
    G11426047Courtesy of MAZDA MOTORS CORP.
  3. Remove the nut.
  4. Remove the AudioPilot® microphone.
  5. Install in the reverse order of removal.
