Tie-Rod End Replacement

Special Service Tool (SST)

49 T028 3A0 Ball joint puller set

Courtesy of MAZDA MOTORS CORP.

Replacement Part

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION ).

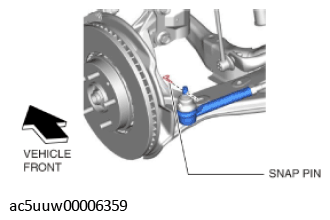

2. Remove the snap pin from the tie-rod end.

   Courtesy of MAZDA MOTORS CORP.

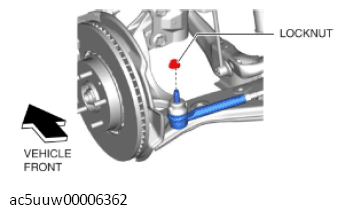

3. Loosen the tie-rod end locknut.

   Courtesy of MAZDA MOTORS CORP.

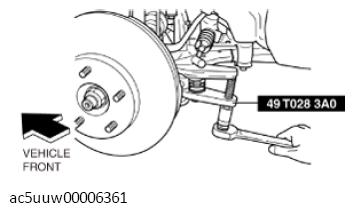

4. Detach the tie-rod end from the steering knuckle using the SST.

   Courtesy of MAZDA MOTORS CORP.

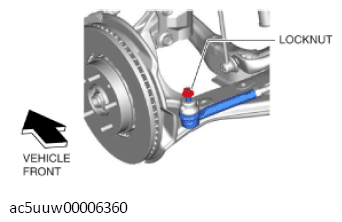

5. Remove the locknut from the tie-rod end.

   Courtesy of MAZDA MOTORS CORP.

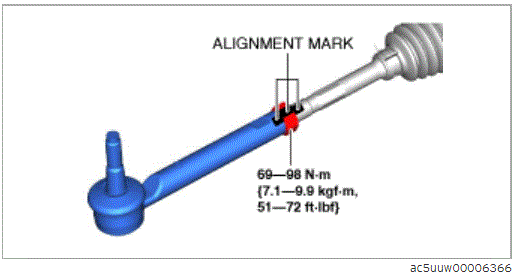

6. Place alignment marks as shown in the figure for proper installation.

   Courtesy of MAZDA MOTORS CORP.

7. Remove the tie-rod end.

   Courtesy of MAZDA MOTORS CORP.

8. Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

   Courtesy of MAZDA MOTORS CORP.

9. Place alignment marks as shown in the figure for proper installation.
   Fig 1: Tie-Rod End With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   • If there are no alignment marks, go to the following procedure.
10. Adjust dimension A shown in the figure to the standard, then assemble the tie-rod end.

    Courtesy of MAZDA MOTORS CORP.

    Standard

    8.6-21.6 mm {0.34-0.85 in}

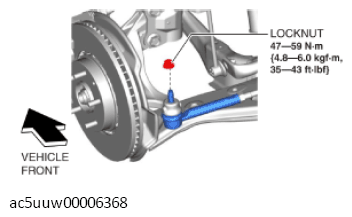

11. Install the tie-rod end to the steering knuckle.
    Fig 2: Tie-Rod End, Steering Knuckle And Locknut With Torque Specification

    Courtesy of MAZDA MOTORS CORP.

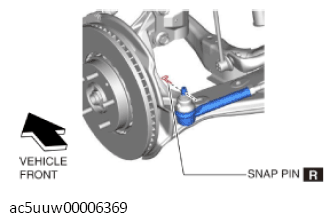

12. Install a new snap pin to the tie-rod end.

    Courtesy of MAZDA MOTORS CORP.

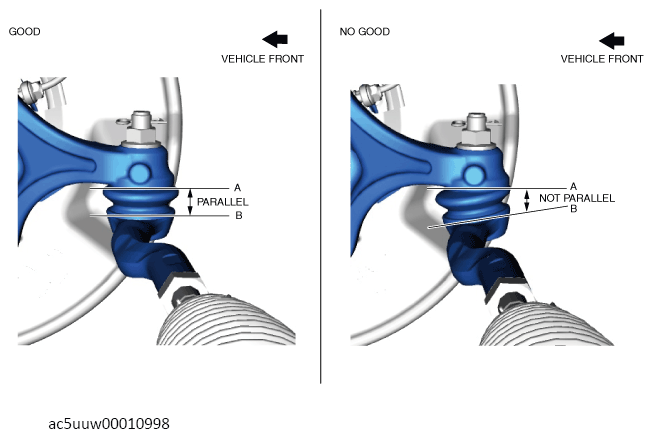

13. Verify that A and B shown in the figure are parallel while the vehicle is on the ground.

    Courtesy of MAZDA MOTORS CORP.

    CAUTION:

    • Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.
    • If the installation position is not correct, perform the adjustment using the following procedure.
    1. Adjust the tie-rod end by rotating it so that it is at the correct position.

    Courtesy of MAZDA MOTORS CORP.

14. Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION ).
15. After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT ).
