Steering Column Component Removal Note

CAUTION:
  • Always lock the adjusting lever to prevent damage to the steering column. In addition, do not unlock the adjusting lever until the steering column installation is completed.
  • If the steering column is removed, remove it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is removed in the incorrect order.
  1. Lock the adjusting lever.
    G11428734Courtesy of MAZDA MOTORS CORP.

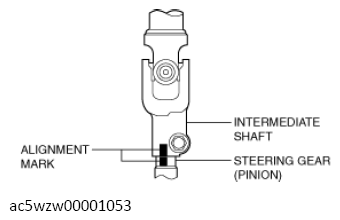

  2. Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure.
    G13113143Courtesy of MAZDA MOTORS CORP.
  3. Remove the joint bolt.
  4. Disconnect the intermediate shaft from the steering gear (pinion).
  5. Remove the nuts, and then remove the steering column component from the dashboard member.
