Steering Location Index

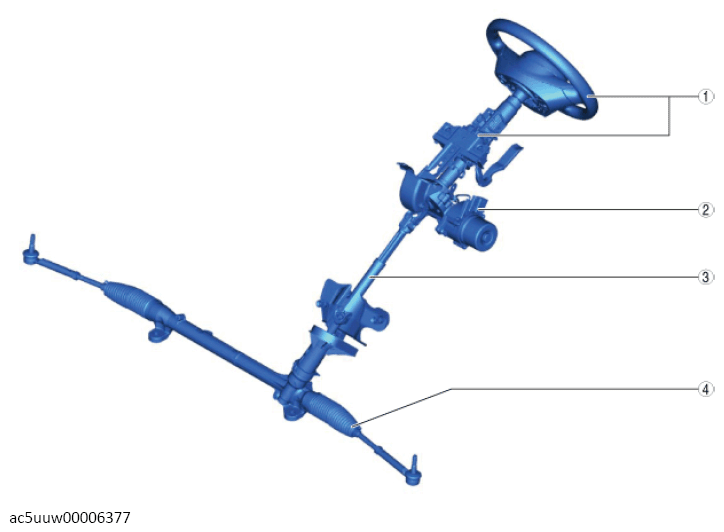

G14467420Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Steering wheel and column
(See STEERING WHEEL AND COLUMN INSPECTION ).
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION ).
(See STEERING WHEEL BEZEL REMOVAL/INSTALLATION ).
(See STEERING WHEEL COVER REMOVAL/INSTALLATION ).
(See STEERING SHAFT INSPECTION ).
2 EPS Control Module
(See EPS CONTROL MODULE INSPECTION ).
3 Intermediate shaft
(See INTERMEDIATE SHAFT REMOVAL/INSTALLATION ).
4 Steering gear and linkage
(See TIE-ROD END REPLACEMENT ).
(See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION ).
(See STEERING GEAR AND LINKAGE INSPECTION ).
(See STEERING GEAR AND LINKAGE DISASSEMBLY ).
(See TIE-ROD END INSPECTION ).
(See TIE ROD INSPECTION ).
(See STEERING GEAR AND LINKAGE ASSEMBLY ).
