Tie-rod End Assembly Note

Align the alignment marks made before removal and assemble the tie-rod end to the tie rod.

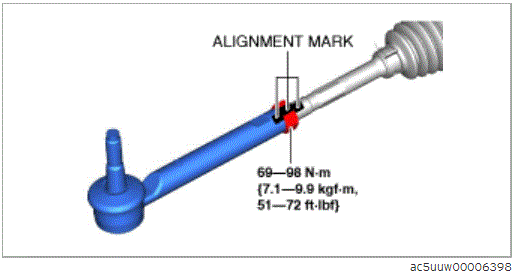

Fig 1: Tie-Rod End Assembly With Torque Specification
Courtesy of MAZDA MOTORS CORP.
NOTE:
- When newly replacing a tie-rod end, place alignment marks on the new part in the same position as the remove tie-rod end.
Courtesy of MAZDA MOTORS CORP.
- If there are no alignment marks, go to the next step.

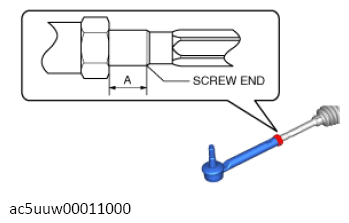

Adjust dimension A shown in the figure to the standard, then assemble the tie-rod end.

Courtesy of MAZDA MOTORS CORP.

Standard

8.6-21.6 mm {0.34-0.85 in}
