Tie Rod Assembly Note

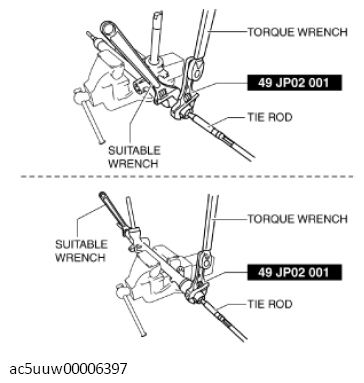

1. Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure dimensions A and L shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

2. Tighten the tie rod after calculating the tightening torque using the following formula.

Courtesy of MAZDA MOTORS CORP.

Tightening Torque

69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf}

Calculation formula

Tx(L/A) T: Tightening torque (69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf} L:

Torque wrench effective length A: Length from center of tie rod to grip
