Steering Gear And Linkage Assembly: Notes
Special Service Tool (SST)
| 49 JP02 001 Adjustable wrench |
49 T025 001 Boot clamp crimpers |
Replacement Part
| Boot band Quantity: 2 Location of use: Boot |
Oil and Chemical Type
| Grease Type: MOLYWHITE LSG |
CAUTION:
- To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
- Assemble in the order shown in the figure.
- Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION ).

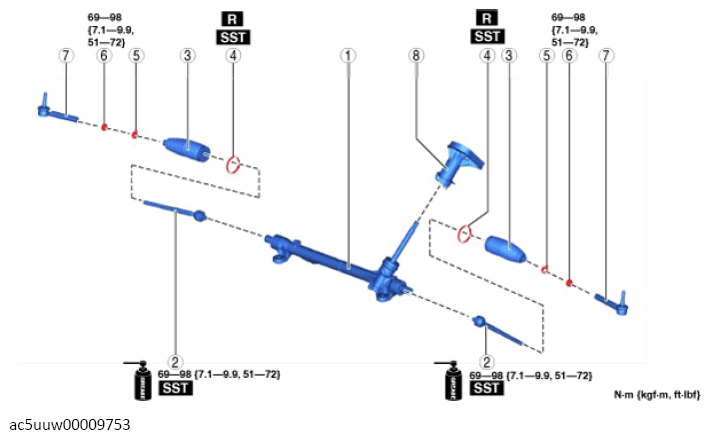

PART DESCRIPTION
| 1 | Steering gear |
| 2 | Tie Rod (See Tie Rod Assembly Note ). |
| 3 | Boot |
| 4 | Boot band (See Boot Band Assembly Note ). |
| 5 | Boot clamp |
| 6 | Locknut |
| 7 | Tie-rod end (See Tie-rod End Assembly Note ). |
| 8 | Dust cover |
