Intermediate Shaft Removal Note

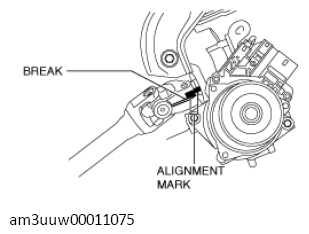

  1. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    G11428694Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure.
    G13113143Courtesy of MAZDA MOTORS CORP.
  3. Remove in the order of joint bolt A and joint bolt B.
    G11428696Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft.
