Structural View

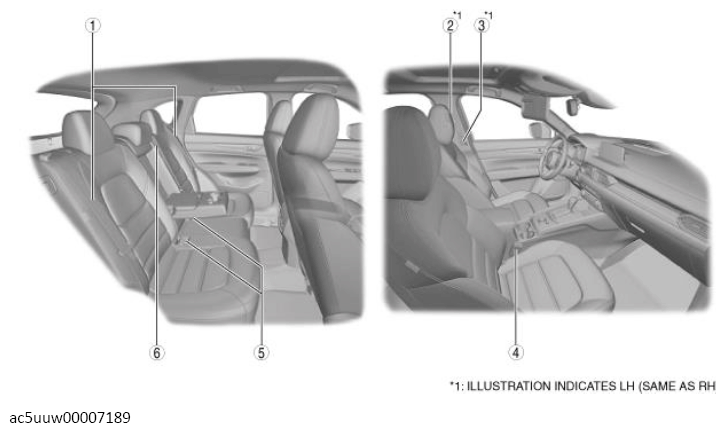

G13675423Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Rear seat belt
(See REAR SEAT BELT REMOVAL/INSTALLATION ).
(See SEAT BELT INSPECTION ).
2 Adjuster anchor
(See ADJUSTER ANCHOR REMOVAL/INSTALLATION ).
3 Front seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION ).
(See SEAT BELT INSPECTION ).
4 Front buckle
(See FRONT BUCKLE REMOVAL/INSTALLATION ).
(See BUCKLE SWITCH INSPECTION ).
5 Rear buckle
(See REAR BUCKLE REMOVAL/INSTALLATION ).
6 Rear center seat belt
(See REAR CENTER SEAT BELT REMOVAL/INSTALLATION ).
