DTC B1308-11: Touch Sensor Circuit Malfunction [Power Liftgate (PLG) Control Module]: Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1308:11 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Touch sensor circuit malfunction |
| Detection condition |
- The power liftgate (PLG) control module detects a short to ground in the touch sensor circuit for 5 min more
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- Power liftgate (PLG) touch sensor (LH) connector or terminal malfunction
- Power liftgate (PLG) touch sensor (RH) connector or terminal malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

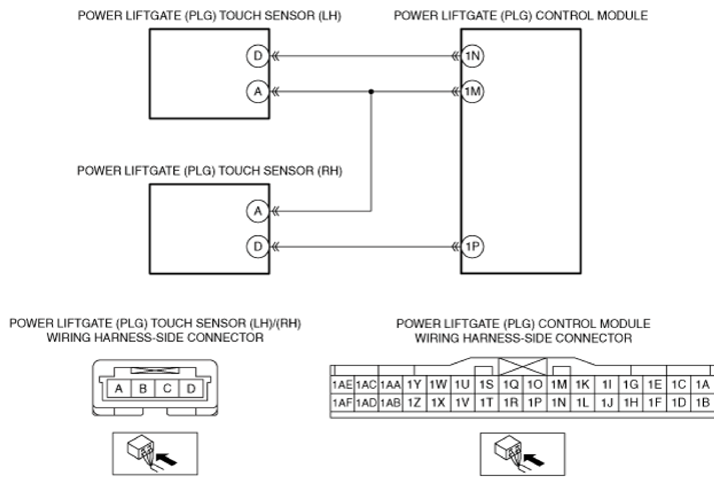

- Short to ground in wiring harness between the following terminals:
- Power liftgate (PLG) touch sensor (LH) terminal D-Power liftgate (PLG) control module terminal 1N
- Power liftgate (PLG) touch sensor (RH) terminal D-Power liftgate (PLG) control module terminal 1P
- Power liftgate (PLG) touch sensor (LH) malfunction
- Power liftgate (PLG) touch sensor (RH) malfunction
- Power liftgate (PLG) control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
