DTC B1D00-13: Headlight Leveling Actuator Circuit Malfunction [Auto Leveling Control Module]: Notes
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1D00:13 (AUTO LEVELING CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Headlight (LH) circuit malfunction |
| Detection condition |
- The auto leveling control module detected an open circuit in the headlight (LH) circuit during the headlight LO on control with the ignition switched ON (engine off or on).
|
| Fail-safe |
- Control of the headlight auto leveling system is continued.
|
| Possible cause |
- Front combination light (LH) connector or terminal malfunction
- Auto leveling control module connector or terminal malfunction

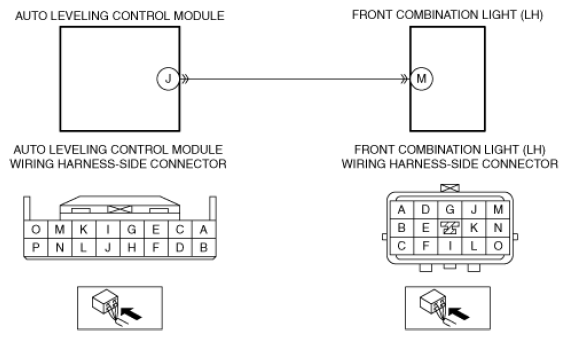

- Short to ground in wiring harness between auto leveling control module terminal J and front combination light (LH) terminal M
- Open circuit in wiring harness between auto leveling control module terminal J and front combination light (LH) terminal M
- Front combination light (LH) malfunction
- Auto leveling control module malfunction
|
