Quick Diagnostic Chart

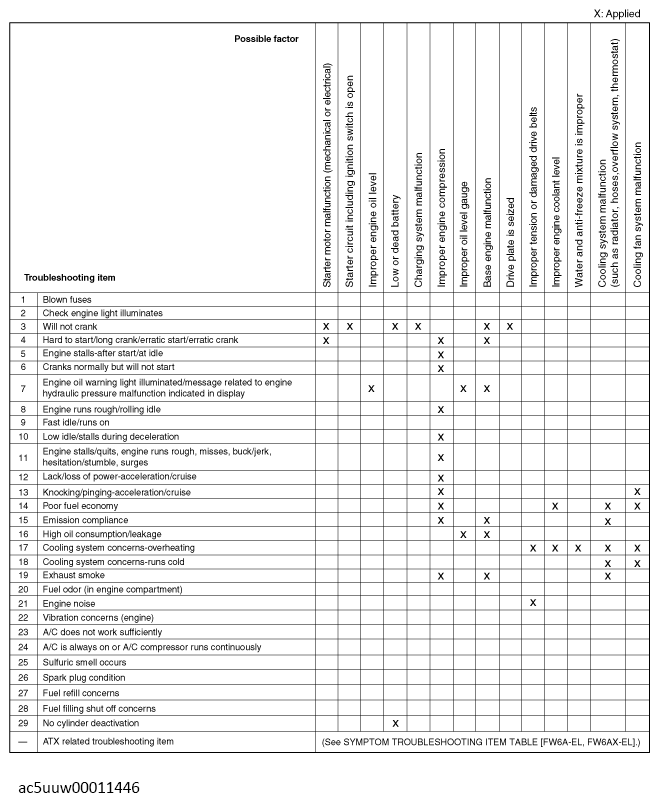

G13671544Courtesy of MAZDA MOTORS CORP.

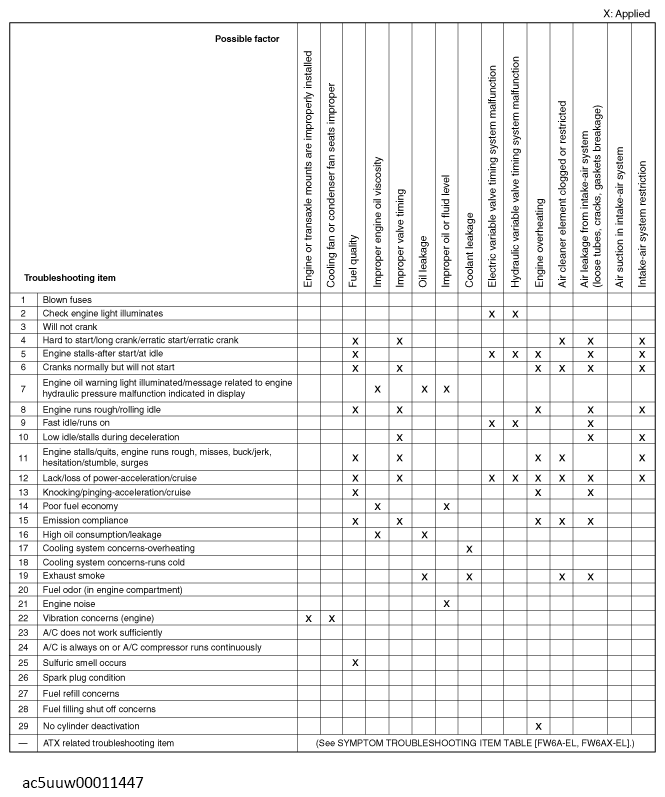

G13671545Courtesy of MAZDA MOTORS CORP.

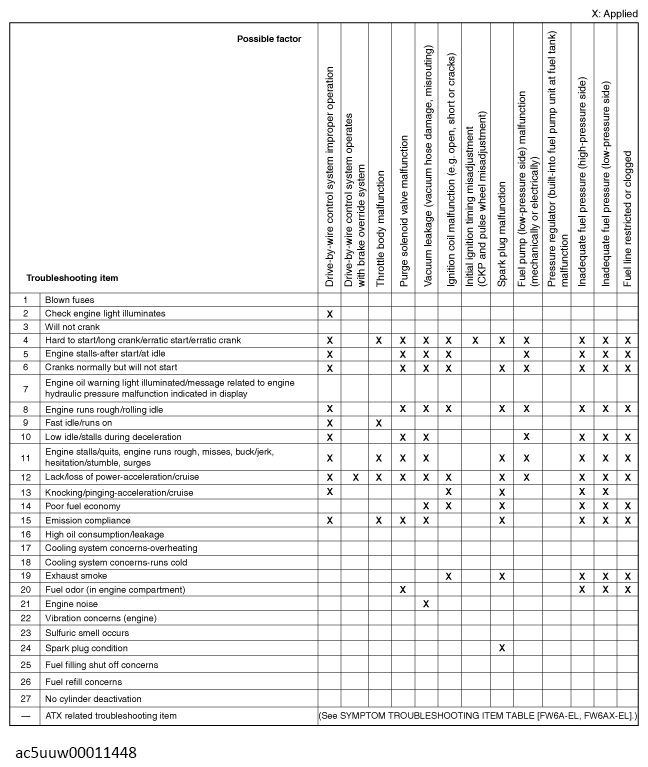

G14464549Courtesy of MAZDA MOTORS CORP.

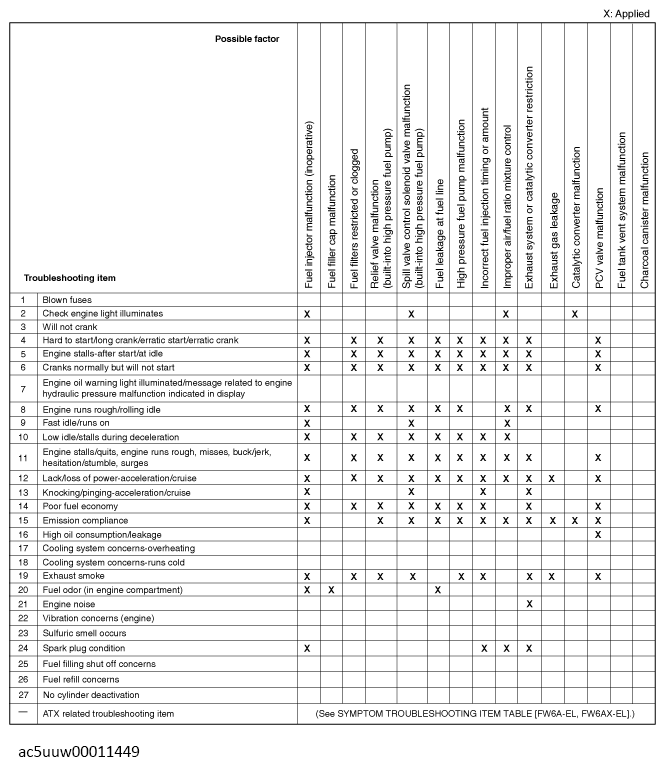

G14464550Courtesy of MAZDA MOTORS CORP.

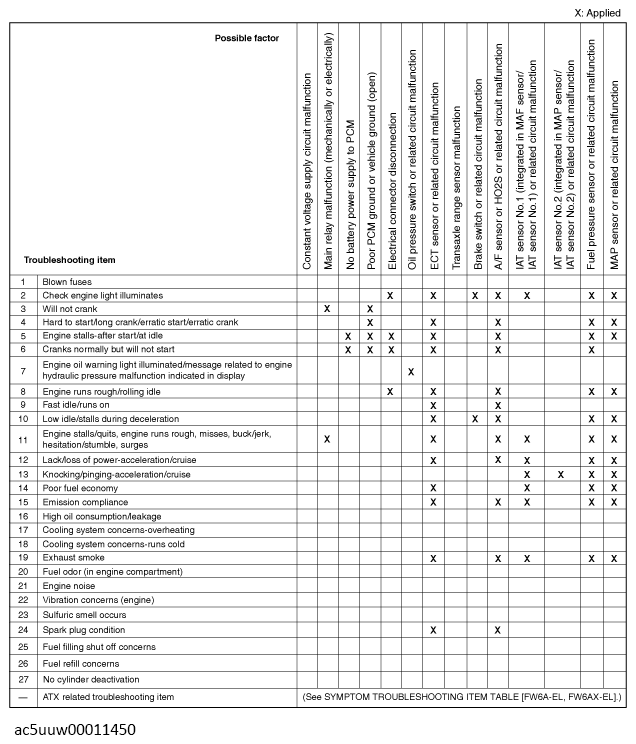

G14464551Courtesy of MAZDA MOTORS CORP.

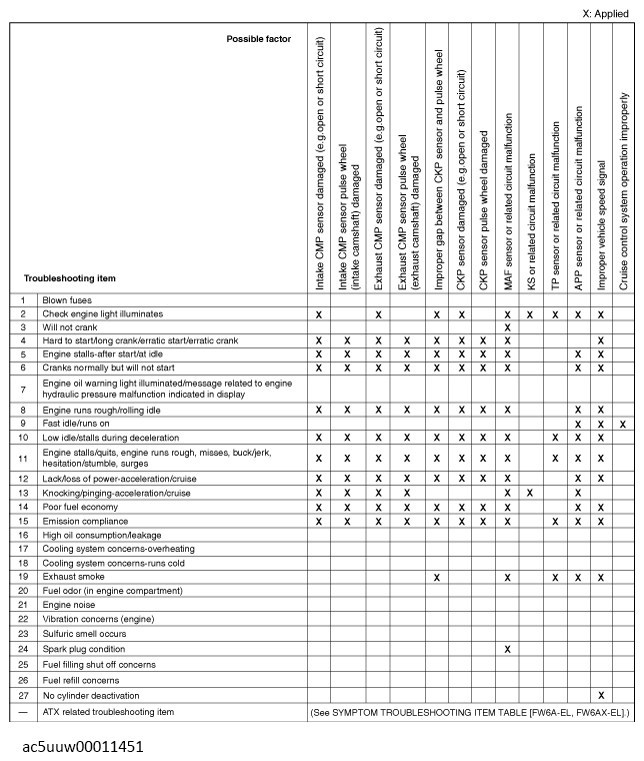

G14464552Courtesy of MAZDA MOTORS CORP.

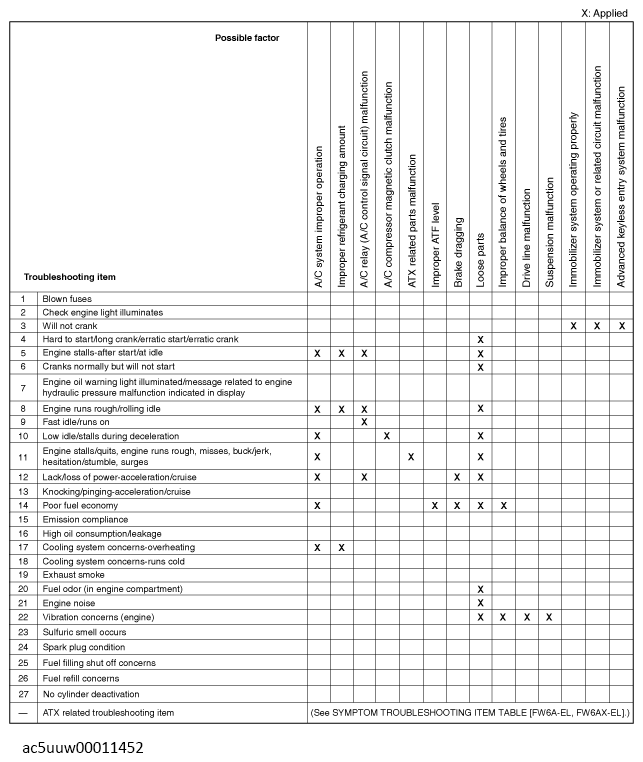

G14464553Courtesy of MAZDA MOTORS CORP.

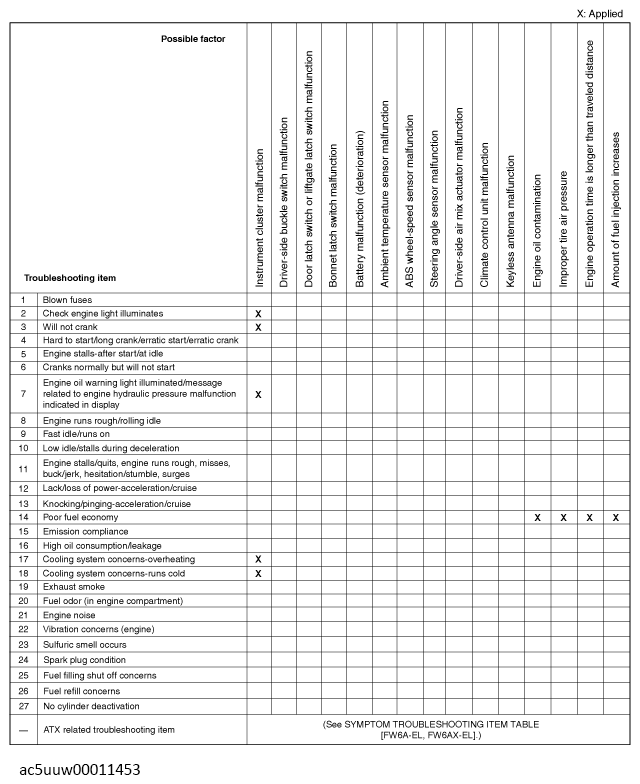

G14464554Courtesy of MAZDA MOTORS CORP.

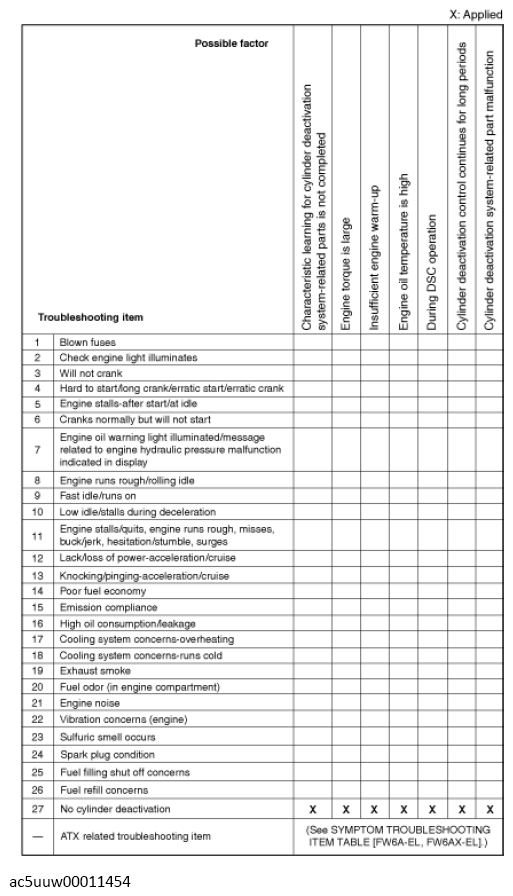

G14464555Courtesy of MAZDA MOTORS CORP.
