Engine Compartment Side

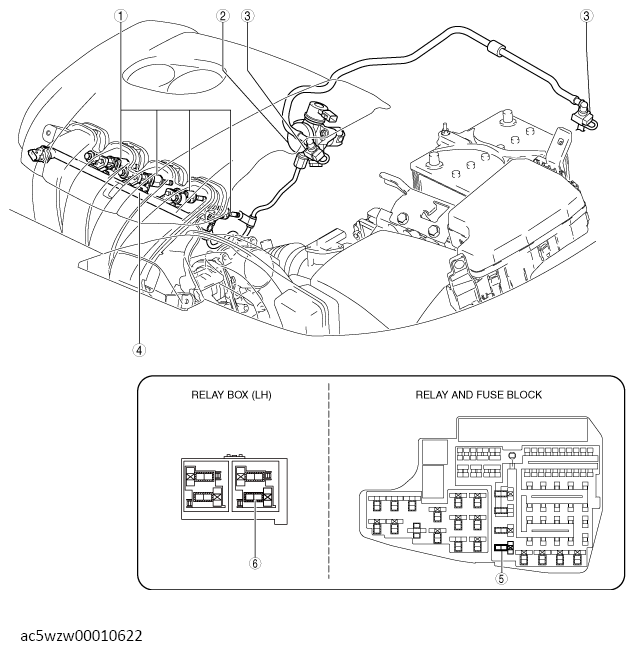

G13672549Courtesy of MAZDA MOTORS CORP.
PART SPECIFICATION

1 Fuel injector
(See FUEL INJECTOR REMOVAL/INSTALLATION ).
(See FUEL INJECTOR INSPECTION ).
2 High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION ).
(See HIGH PRESSURE FUEL PUMP INSPECTION ).
3 Quick release connector
(See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION ).
4 Fuel distributor
(See FUEL INJECTOR REMOVAL/INSTALLATION ).
5 Sub relay
(See RELAY INSPECTION ).
6 Fuel pump relay
(See RELAY INSPECTION ).
