WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
2. Remove the following parts:
   1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION ).
   2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION ).
   3. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION ).
   4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).

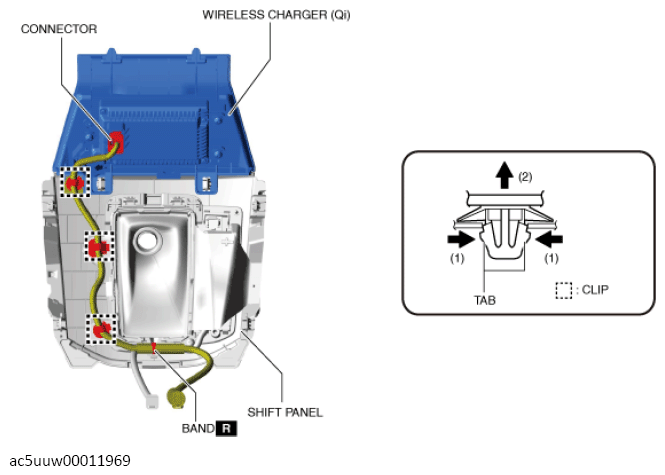

3. Cut the band.

   Courtesy of MAZDA MOTORS CORP.

4. While pressing the tabs in the directions of arrows (1) shown in the figure, remove the clip in the direction of arrow (2).
5. Disconnect the connector.

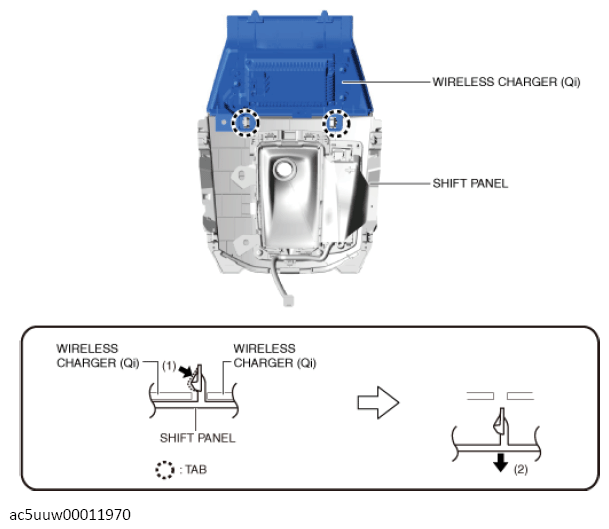

6. Press the tabs in the order of arrows (1) and (2) shown in the figure and remove the wireless charger (Qi).

   Courtesy of MAZDA MOTORS CORP.

7. Install in the reverse order of removal.
