Power Window SUBSWITCH Removal/Installation: Rear

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION ).

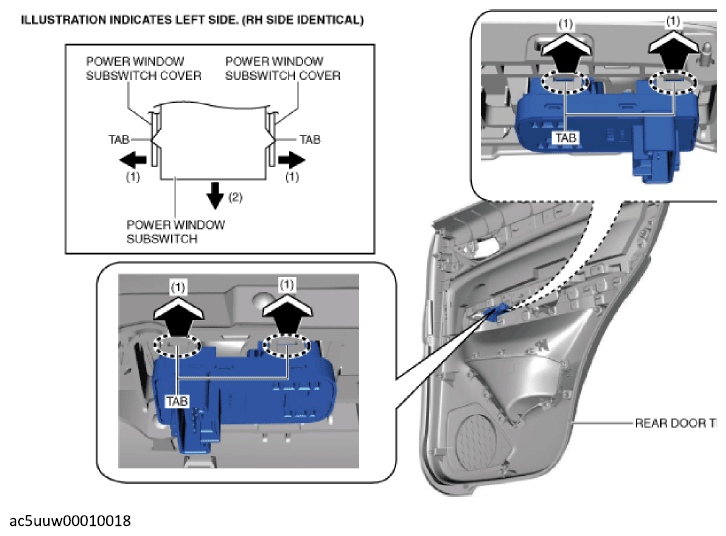

  3. Move the power window subswitch cover end in the directions of arrows (1) shown in the figure using a remover tool, and detach the tabs from the power window subswitch cover.
    G12183779Courtesy of MAZDA MOTORS CORP.
  4. Remove the power window subswitch in the direction of arrow (2) shown in the figure.
  5. Install in the reverse order of removal.
