Without Sensor Cover

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).

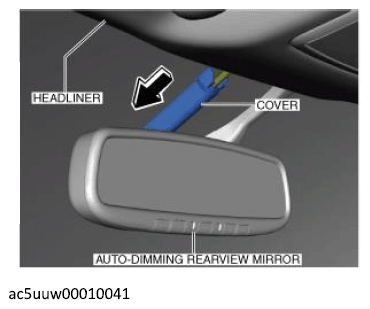

  2. Slide the cover in the direction of the arrow shown in the figure.
    G12183710Courtesy of MAZDA MOTORS CORP.

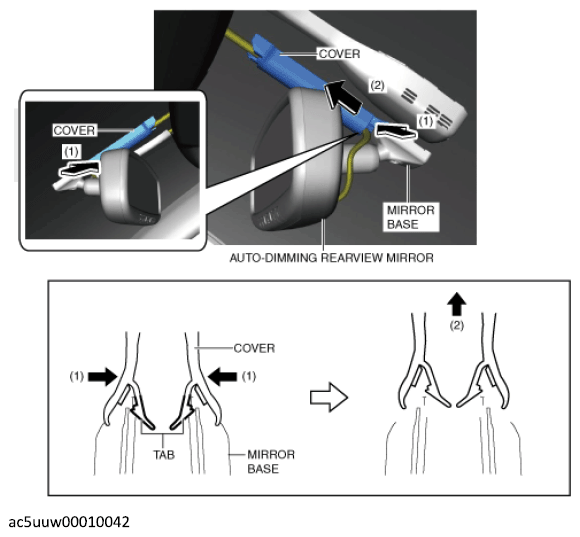

  3. Detach tabs while push the cover in the direction of the arrow (1) shown in the figure, then remove the cover in the direction of the arrow (2).
    G12183711Courtesy of MAZDA MOTORS CORP.

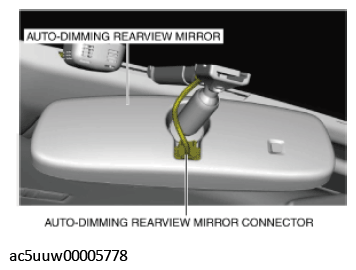

  4. Disconnect the auto-dimming rearview mirror connector.
    G11427638Courtesy of MAZDA MOTORS CORP.
  5. Loosen the screw.

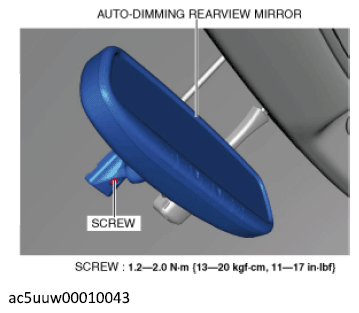

    Fig 1: Auto-Dimming Rearview Mirror Screw With Torque Specification
    G12183713Courtesy of MAZDA MOTORS CORP.

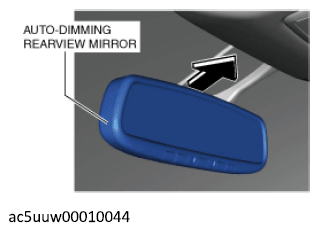

  6. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.
    G12183714Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
