Tie Rod Disassembly Note
Tie Rod Disassembly Note

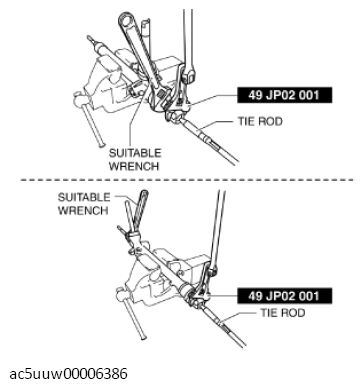

Lock the steering rack end (pinion gear side) against rotation using a wrench and remove the tie rod using the SST.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
