Quick Diagnostic Chart

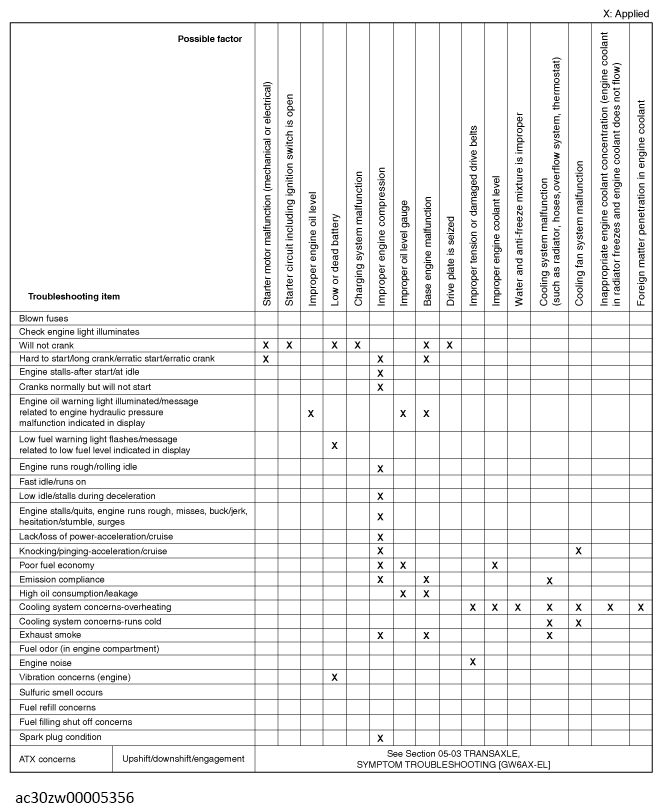

G14478009Courtesy of MAZDA MOTORS CORP.

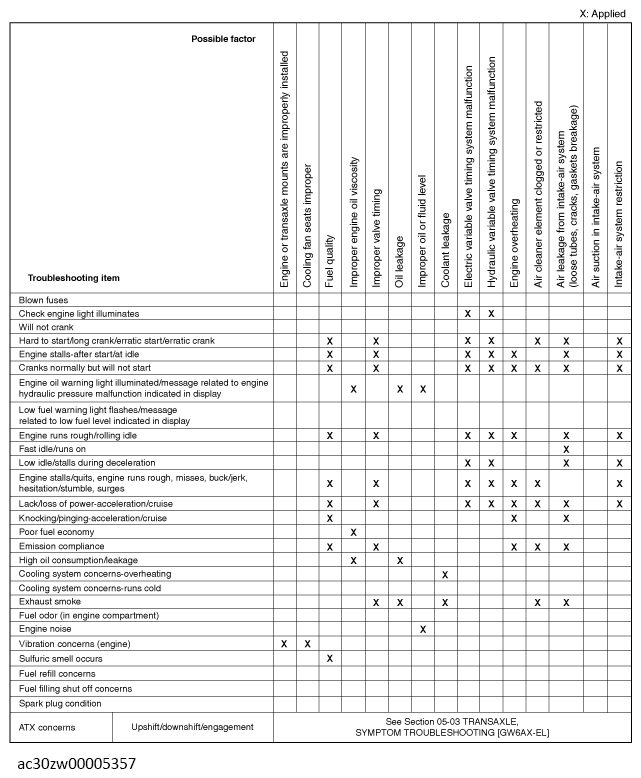

G14478010Courtesy of MAZDA MOTORS CORP.

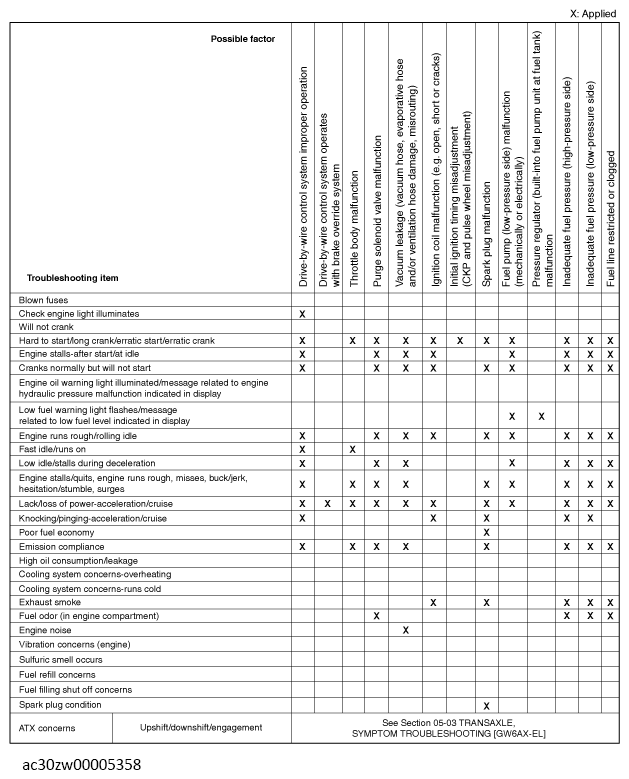

G14478011Courtesy of MAZDA MOTORS CORP.

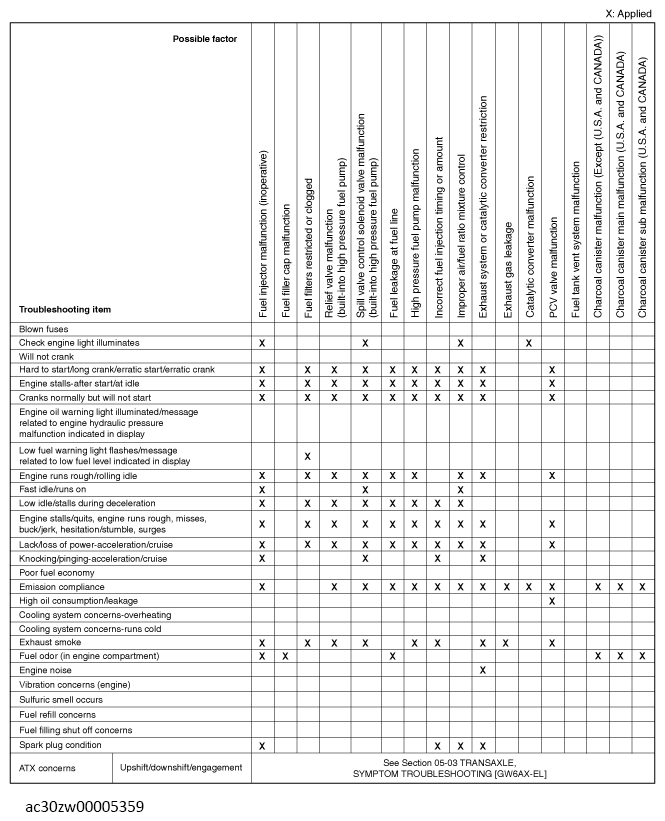

G14478012Courtesy of MAZDA MOTORS CORP.

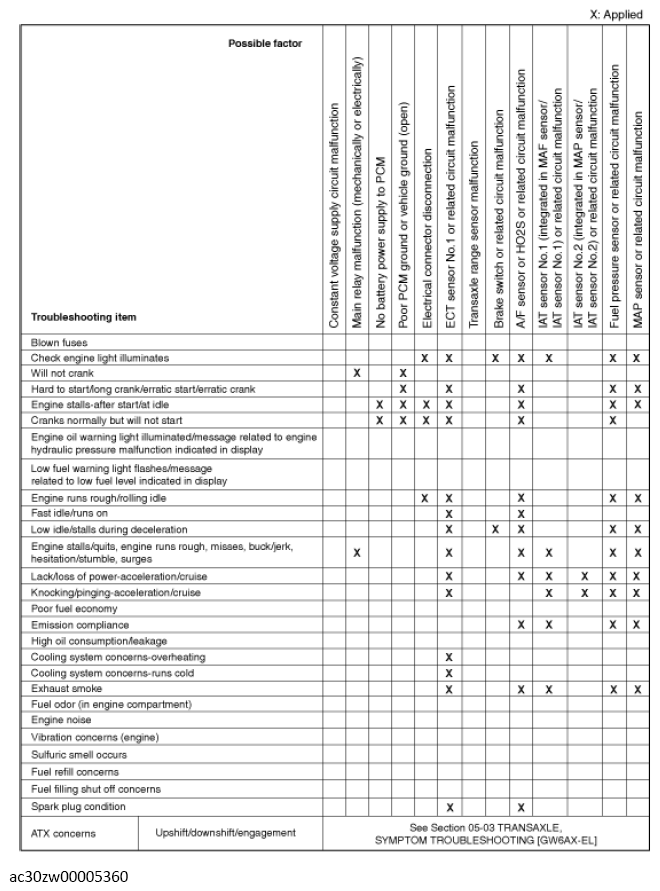

G14478013Courtesy of MAZDA MOTORS CORP.

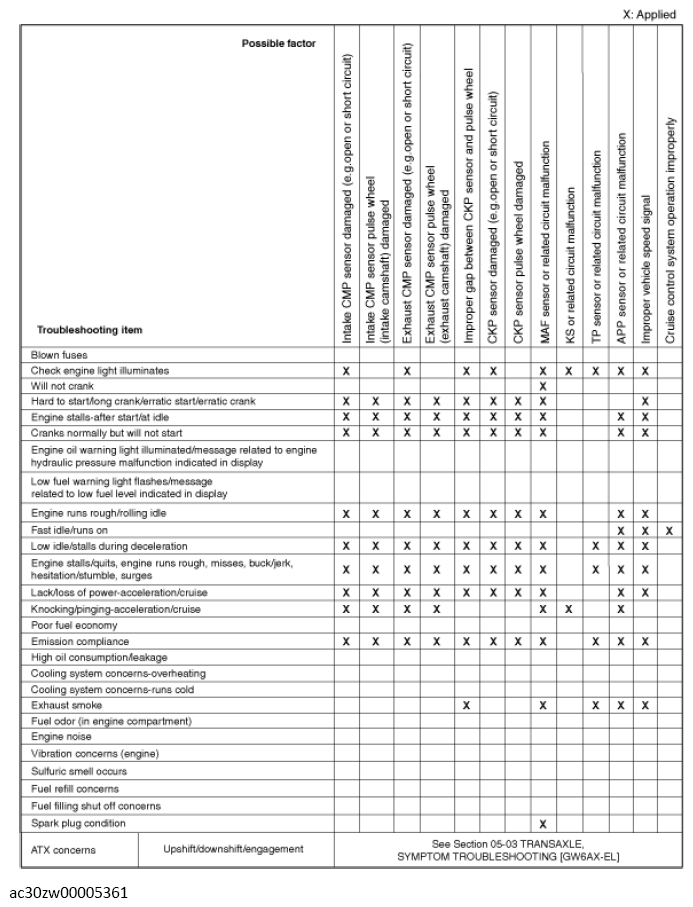

G14478014Courtesy of MAZDA MOTORS CORP.

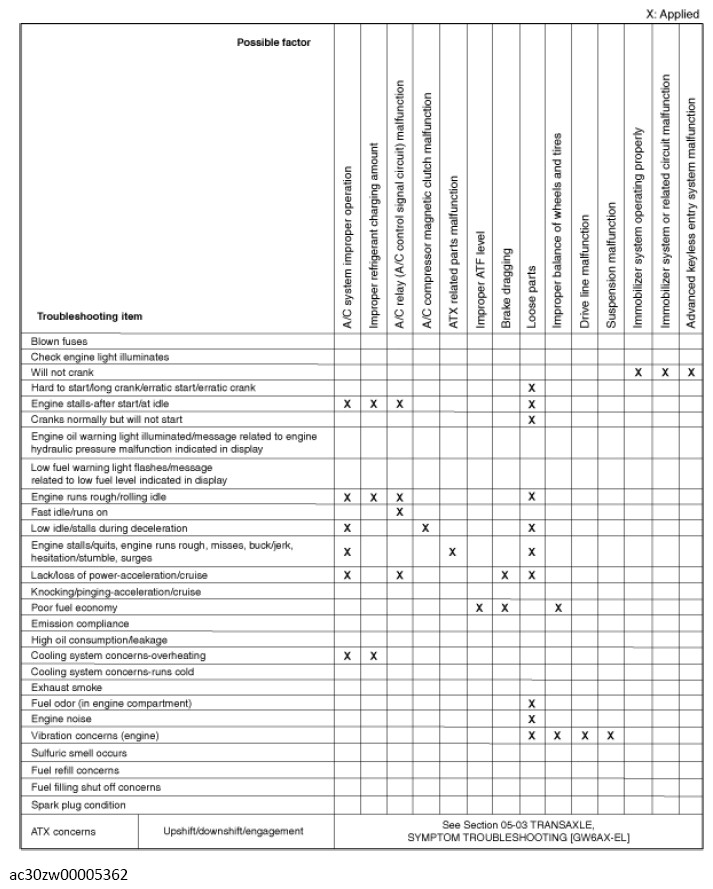

G14478015Courtesy of MAZDA MOTORS CORP.

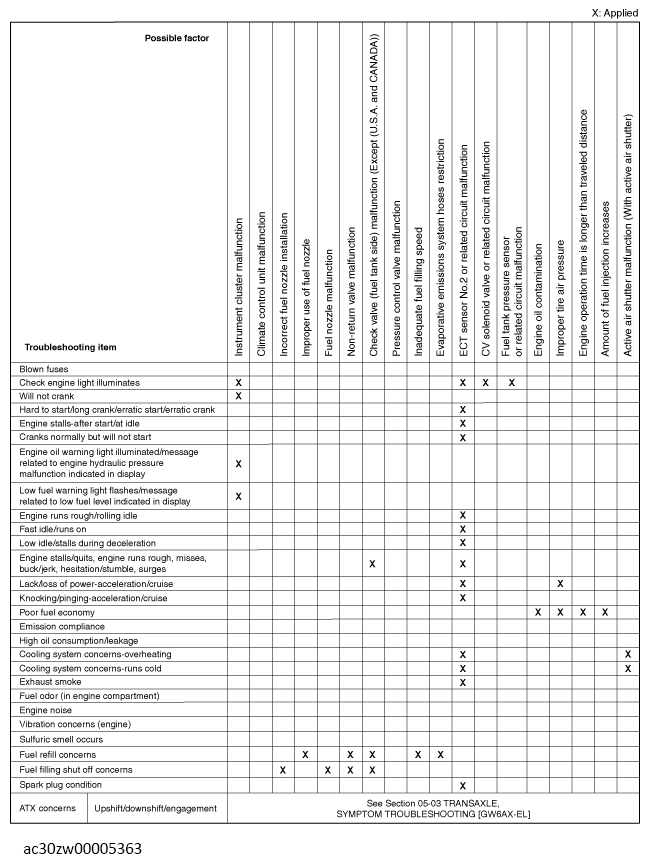

G14478016Courtesy of MAZDA MOTORS CORP.

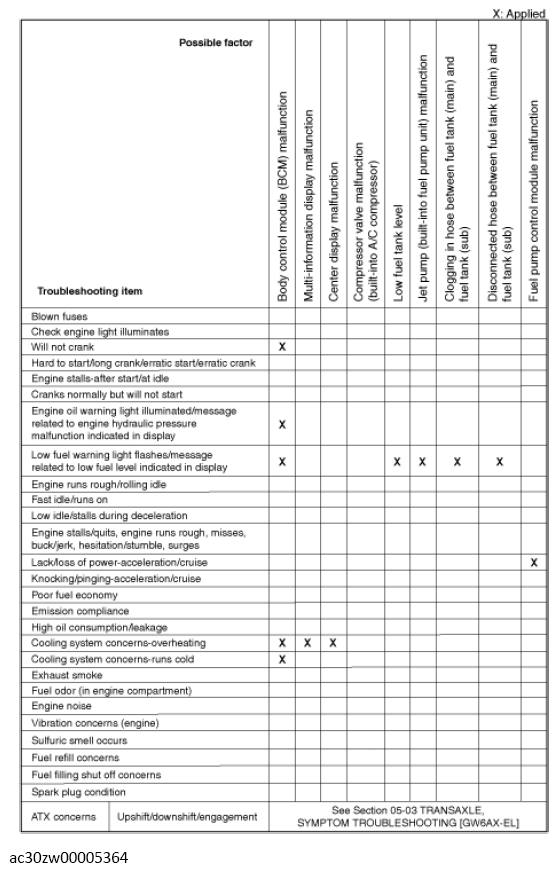

G14478017Courtesy of MAZDA MOTORS CORP.

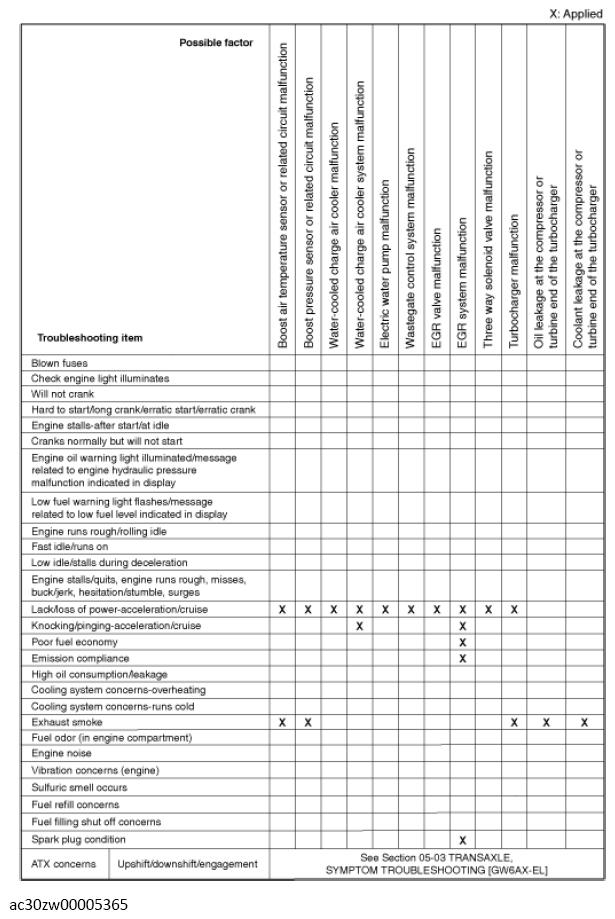

G14478018Courtesy of MAZDA MOTORS CORP.
