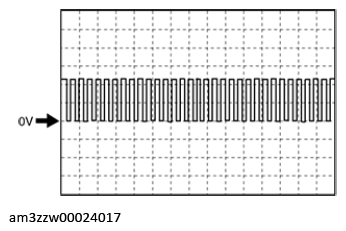

Oscilloscope setting

2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)

Courtesy of MAZDA MOTORS CORP.

2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Racing (Engine speed: 2, 000 RPM)
