Starting System Location Index

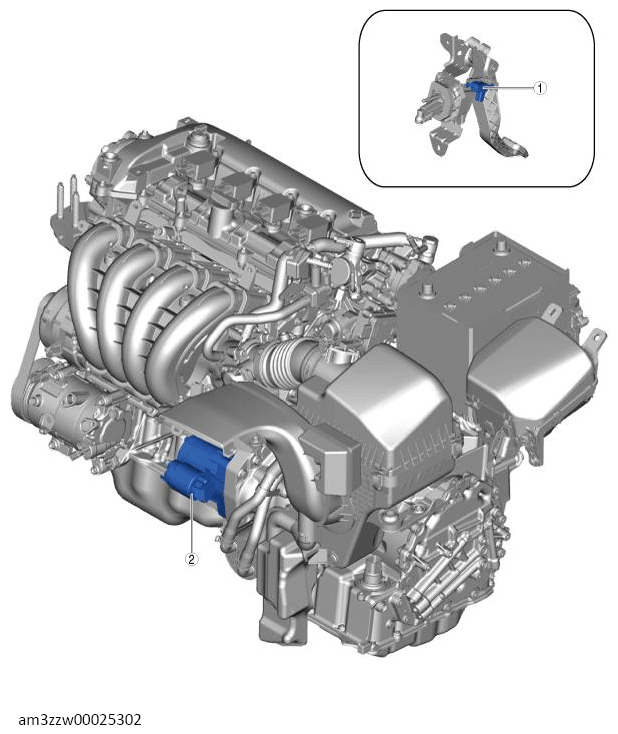

G13714199Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Starter interlock switch (MTX)
(See STARTER INTERLOCK SWITCH INSPECTION .)
2 Starter
(See STARTER REMOVAL/INSTALLATION .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
