Ventilation Hose Installation Note

Install the ventilation hose as shown in the figure.

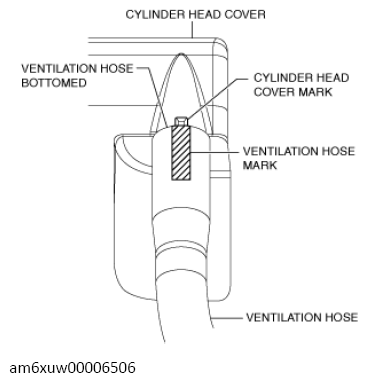

Cylinder head cover side

G13557110

Courtesy of MAZDA MOTORS CORP.

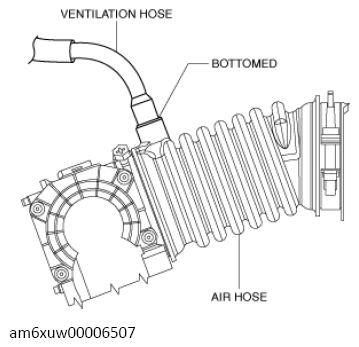

Air hose side

G13557111

Courtesy of MAZDA MOTORS CORP.
