Evaporative Hose Installation Note

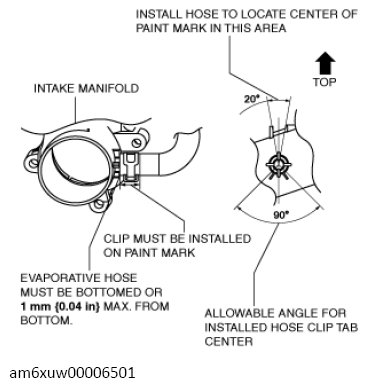

Install the evaporative hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
