Air Hose Installation Note

  1. Install the air hose as shown in the figure.

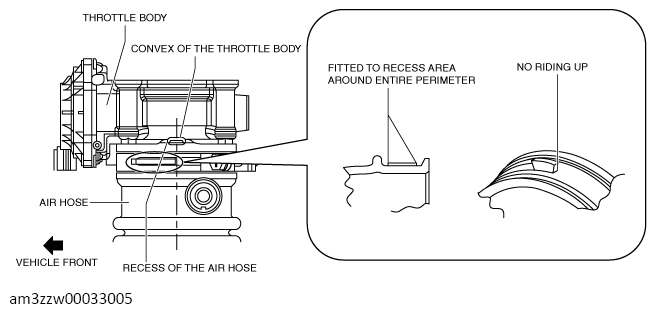

Throttle body side

G13557108Courtesy of MAZDA MOTORS CORP.

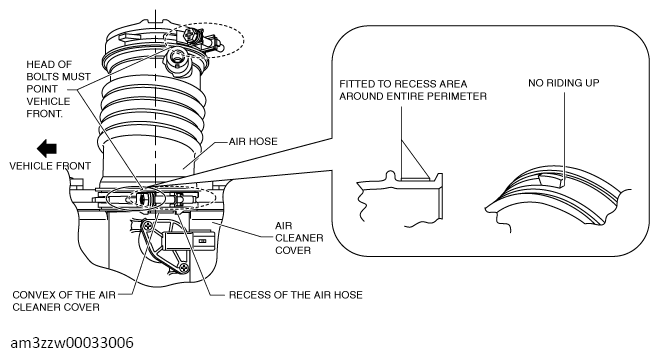

Air cleaner side

G13557109Courtesy of MAZDA MOTORS CORP.
