Accelerator Pedal Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove in the order indicated in the table.

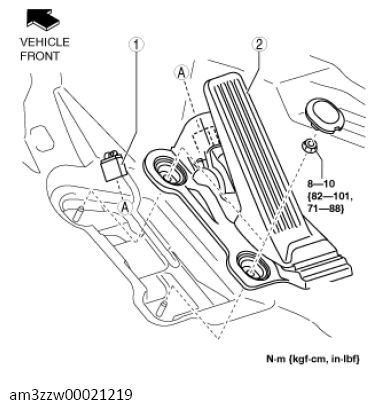

    Fig 1: Accelerator Pedal Components With Torque Specification
    G13713450Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 APP sensor connector
    2 Accelerator pedal
  3. Install in the reverse order of removal.
