Dashboard Disassembly/Assembly [(Us)]: Notes
WARNING:
- Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

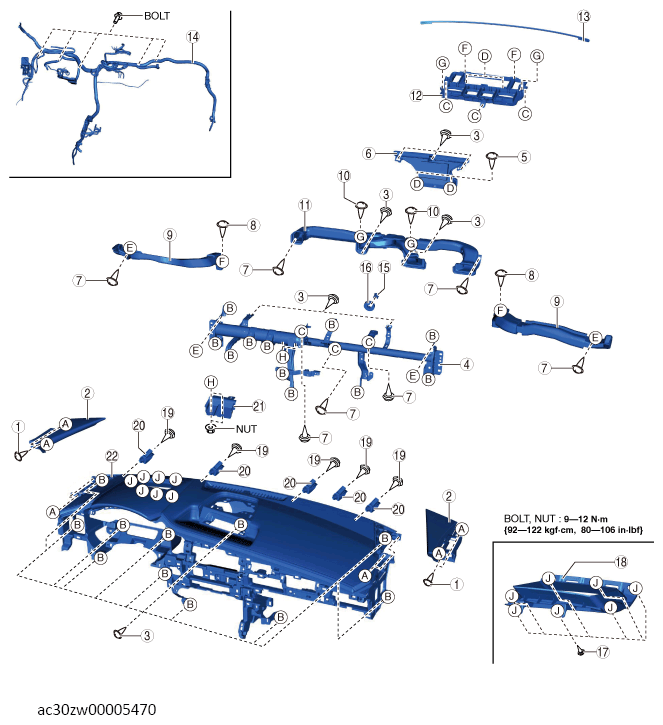

- Disassemble in the order indicated in the table.PART DESCRIPTION
1 Screw 2 Upper garnish 3 Screw 4 Dashboard member 5 Screw 6 Duct No. 2 7 Screw 8 Screw 9 Demister duct 10 Screw 11 Center duct 12 Duct No. 1 13 Seal tape 14 Wiring harness
(See Dashboard Wiring Harness Removal Note .)15 Member junction 16 Cushion rubber 17 Screw 18 Hole cover 19 Screw 20 Guide pin 21 Dashboard bracket 22 Dashboard - Assemble in the reverse order of disassembly.
NOTE:
- When replacing the dashboard, remove the following parts and install them to the new dashboard.
- Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- Front center speaker (with Bose®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
- Global positioning system (GPS) antenna (with global positioning system (GPS)) (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
- Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
- Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(US)] .)
- Driver monitoring camera unit (with driver monitoring system) (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(US)] .)
