Lower Column Cover

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)

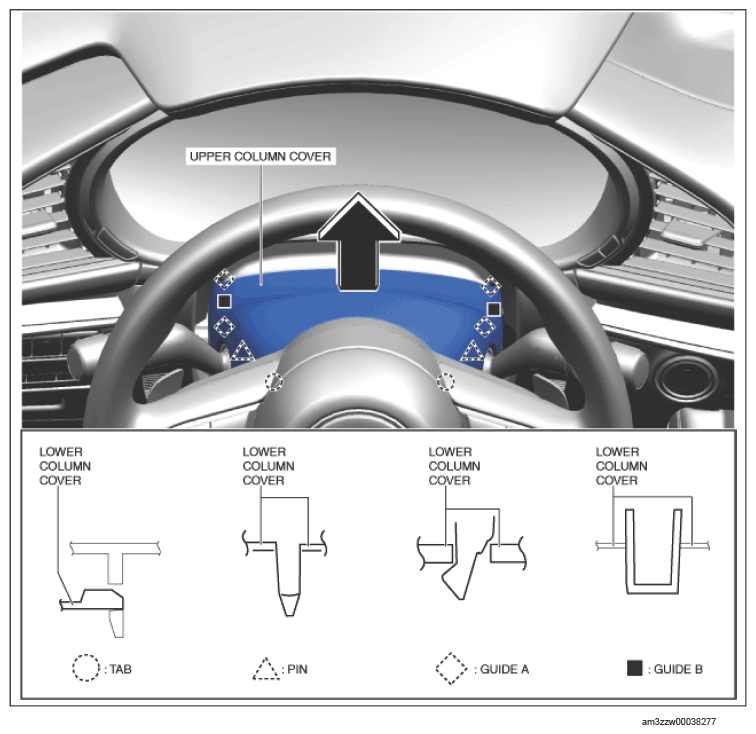

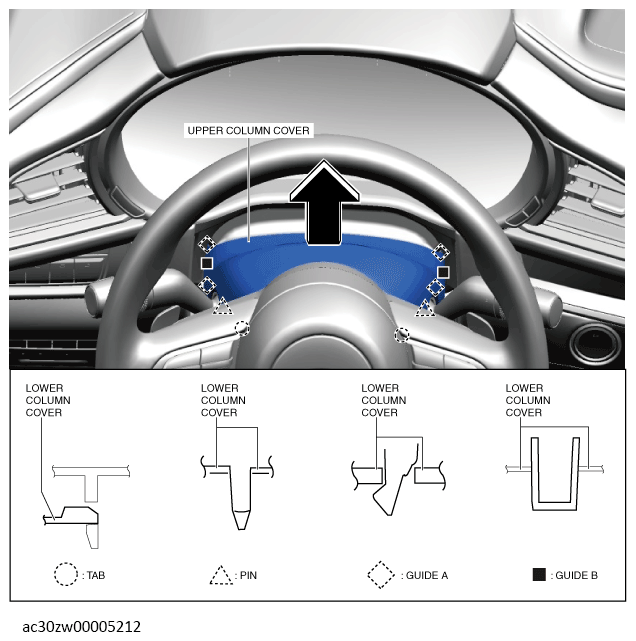

Move the upper column cover in the direction of the arrow, and detach the pins, tabs, guides A and B from the lower column cover.

Courtesy of MAZDA MOTORS CORP.

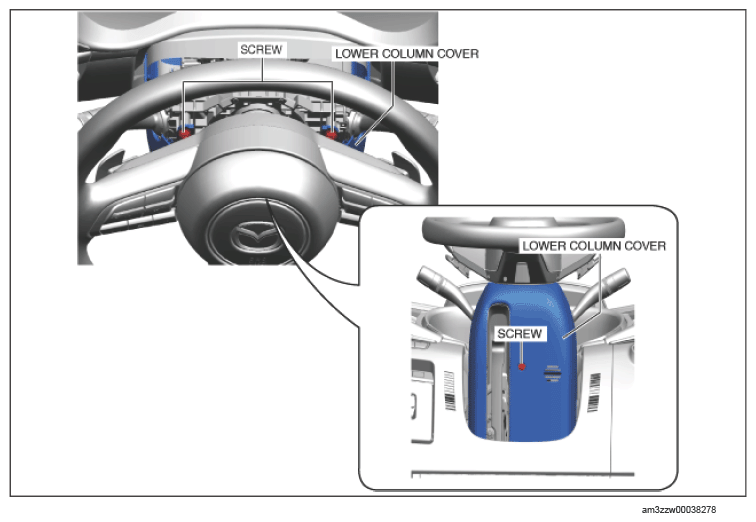

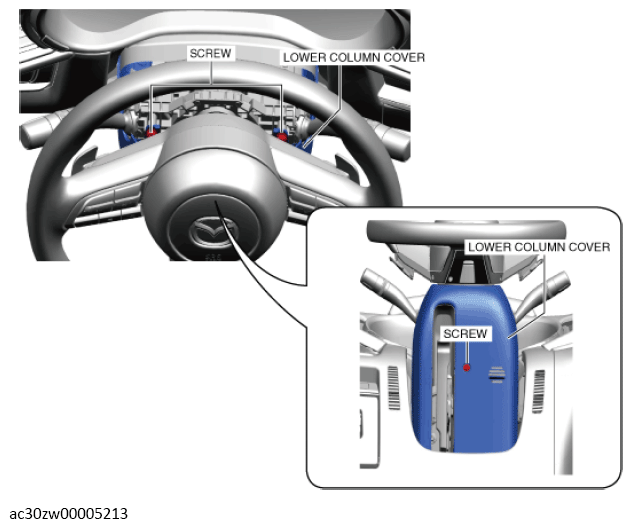

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

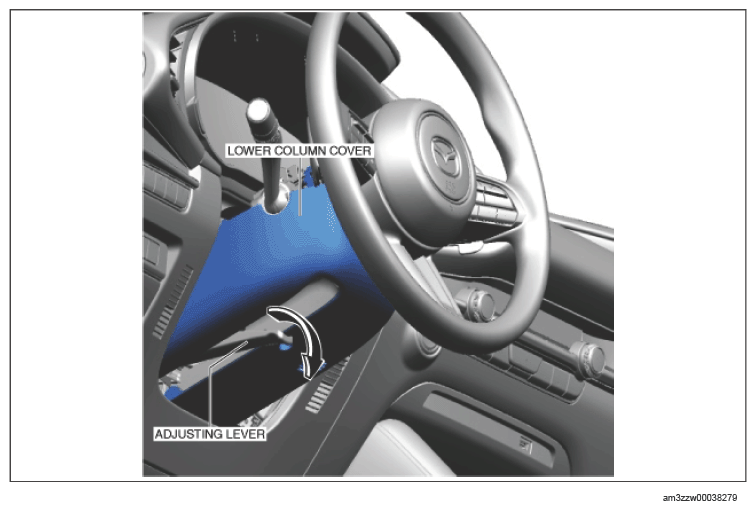

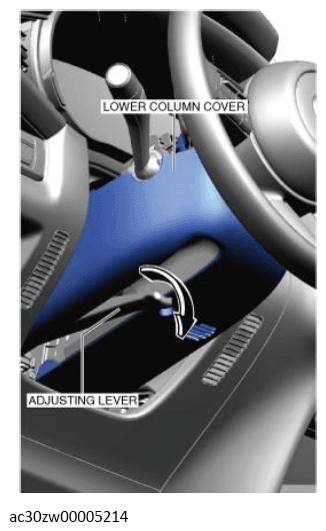

Lower the adjusting lever to the bottommost position.

Courtesy of MAZDA MOTORS CORP.

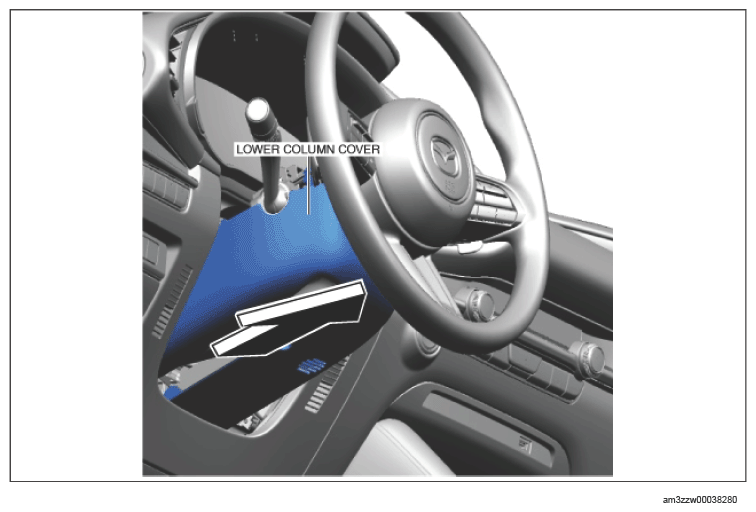

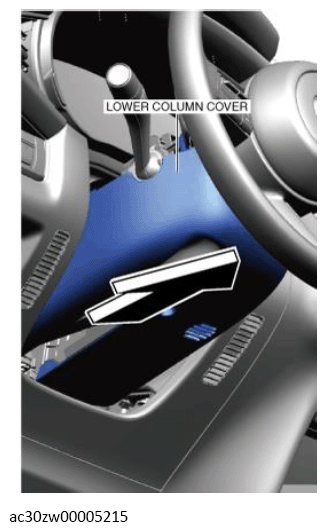

Remove the lower column cover in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Disconnect the notification and warning speaker connector. (with notification and warning speaker)
Install in the reverse order of removal.

NOTE:

When replacing the lower column cover, remove the notification and warning speaker (front). (with notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)
