Switch Panel No. 2

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)

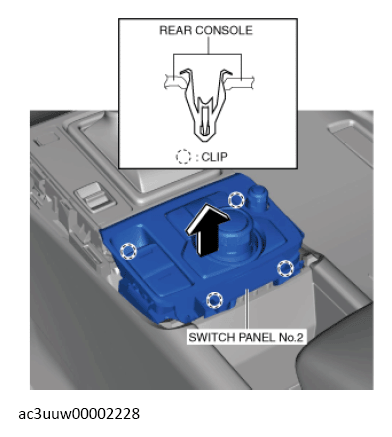

Move the switch panel No. 2 in the direction of the arrow shown in the figure and detach the clips from the rear console.

Courtesy of MAZDA MOTORS CORP.
Disconnect the electric parking brake connector.
Disconnect the commander switch connector. (with commander switch)
NOTE:
- When replacing the switch panel No. 2, remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
- When replacing the switch panel No. 2, remove the commander switch. (with commander switch) (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
