Steering Location Index

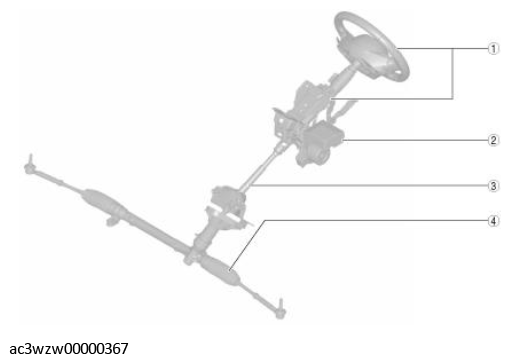

G11438054Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Steering wheel and column
(See STEERING WHEEL AND COLUMN INSPECTION .)
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
(See STEERING WHEEL SIDE COVER REMOVAL/INSTALLATION .)
(See STEERING WHEEL BEZEL REMOVAL/INSTALLATION .)
(See STEERING SHAFT INSPECTION .)
2 EPS CM
(See EPS CONTROL MODULE INSPECTION .)
3 Intermediate shaft
(See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .)
4 Steering gear and linkage
(See TIE-ROD END REPLACEMENT .)
(See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
(See STEERING GEAR AND LINKAGE INSPECTION .)
(See STEERING GEAR AND LINKAGE DISASSEMBLY .)
(See TIE-ROD END INSPECTION .)
(See TIE ROD INSPECTION .)
(See STEERING GEAR AND LINKAGE ASSEMBLY .)
