Rear Center Seat Belt Removal/Installation: Notes

CAUTION:
  • If the retractor is disassembled, the rear center seat belt will not pull out or retract correctly due to looseness and excessive play. Therefore, do not disassemble the retractor.
NOTE:
  • The rear center seat belt is building into the rear seat back.
  1. Switch the ignition off.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  4. Remove the bolt.

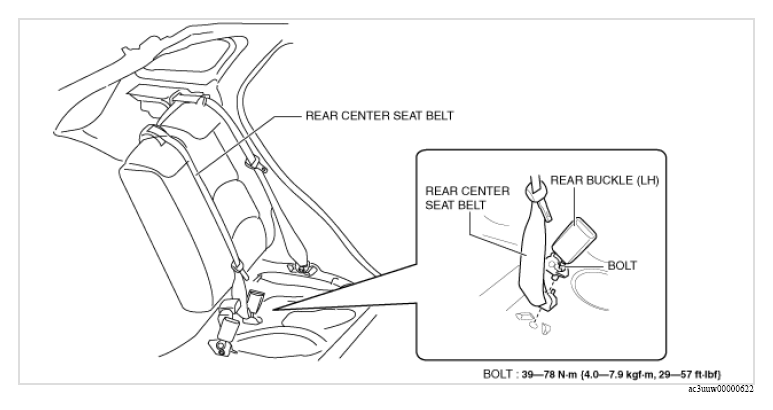

    Fig 1: Rear Buckle, Rear Center Seat Belt And Bolts With Torque Specification
    G13151544Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear buckle (LH).
  6. Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION .)
  7. Remove the rear seat back frame. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .)
  8. Remove the guide.

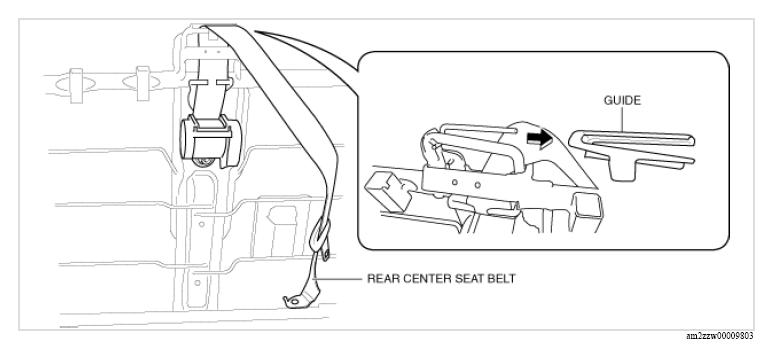

    G13151545Courtesy of MAZDA MOTORS CORP.
  9. Move the rear center seat belt in the order of arrows (1), (2), and (3) shown in the figure, and remove it from the guide.

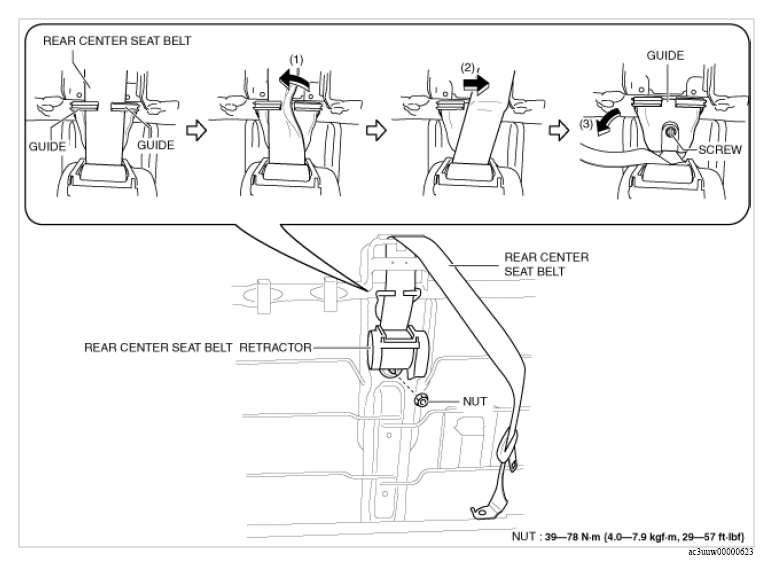

    Fig 2: Rear Center Seat Belt, Retractor And Nuts With Torque Specification
    G13151546Courtesy of MAZDA MOTORS CORP.
  10. Remove the screw.
  11. Remove the guide.
  12. Remove the nut.
  13. Remove the rear center seat belt retractor from the rear seat back frame.
  14. Remove the rear center seat belt.
  15. Install in the reverse order of removal. (See REAR CENTER SEAT BELT INSTALLATION NOTE .)
