WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
  2. Remove the following parts:
    1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)
    2. Switch panel No. 2 (See SWITCH PANEL REMOVAL/INSTALLATION.)
    3. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
  3. Disconnect the connector.

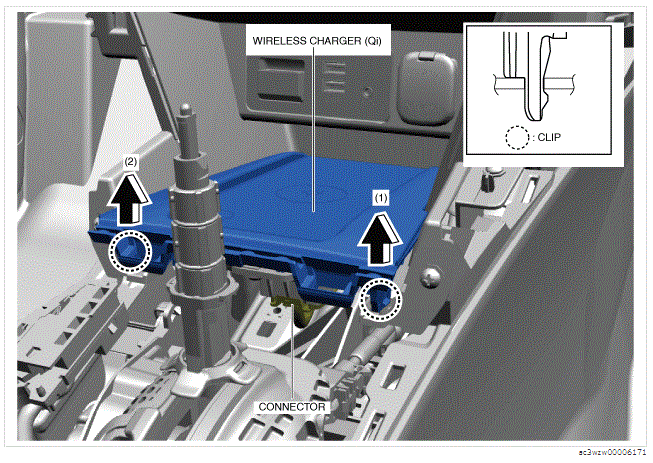

    G00620004Courtesy of MAZDA MOTORS CORP.
  4. Move the wireless charger (Qi) in the direction of the arrow shown in the figure and detach the clips from the front console.
  5. While pressing the clip tabs in the directions of arrows (1) shown in the figure, remove the clip in the direction of arrow (2).

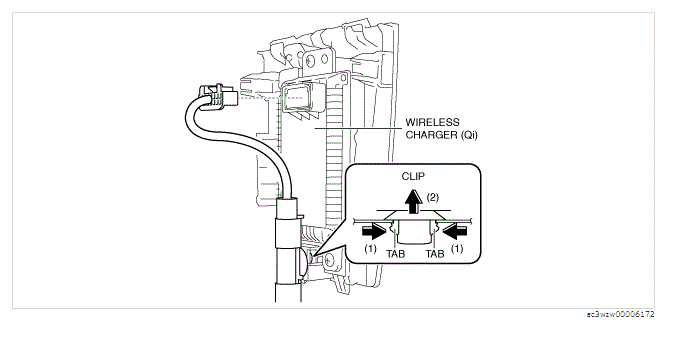

    G00620005Courtesy of MAZDA MOTORS CORP.
  6. Remove the wireless charger (Qi) in the direction of the arrow shown in the figure while detaching the guides.

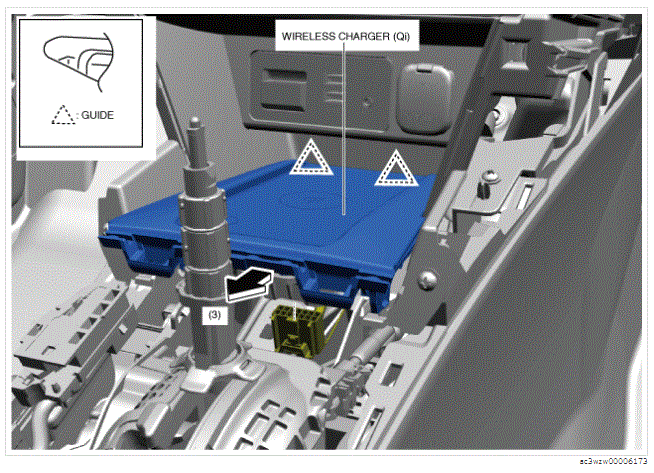

    G00620006Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
