Door Lock Switch Inspection
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)

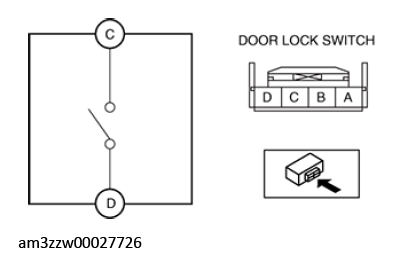

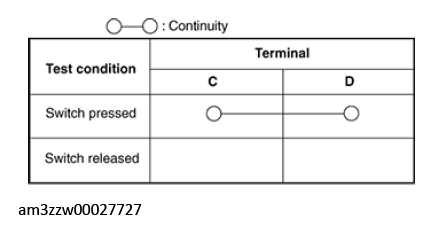

- Verify that the continuity is as indicated in the table.
- If the continuity is not as indicated in the table, replace the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .)
