Trunk Side Insulator Removal/Installation: Sedan-4SD

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
4. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
6. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
7. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
9. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)

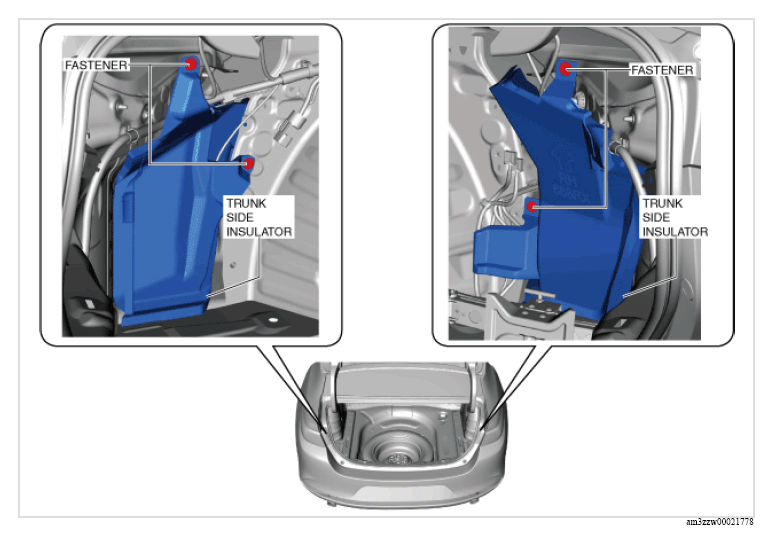

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
