Intermediate Shaft Removal Note

  1. Lock the adjuster lever.
    G13177085Courtesy of MAZDA MOTORS CORP.
  2. Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
    G13177089Courtesy of MAZDA MOTORS CORP.

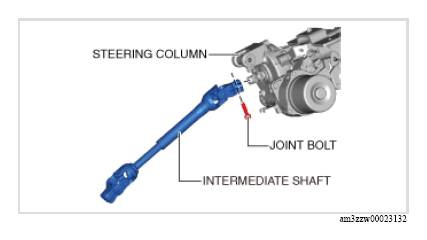

  3. Remove the joint bolt.
    G13177090Courtesy of MAZDA MOTORS CORP.
  4. Remove the intermediate shaft from the steering column.
