Intermediate Shaft Installation Note

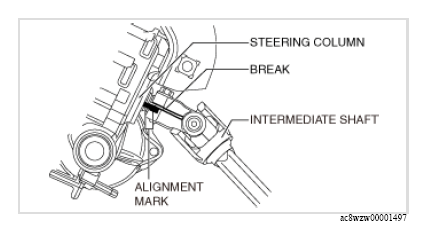

1. Align the intermediate shaft with the alignment marks on the steering column made before removing the intermediate shaft and install the intermediate shaft.

   Courtesy of MAZDA MOTORS CORP.

   NOTE:

   • When replacing the steering column with a new one, place an alignment mark on the new part in the same position as the removed steering column.

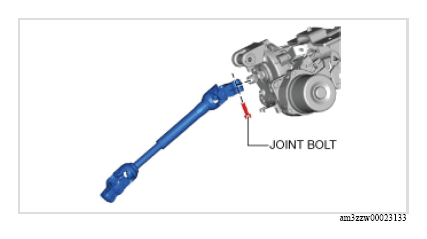

2. Install a new joint bolt.

   Courtesy of MAZDA MOTORS CORP.

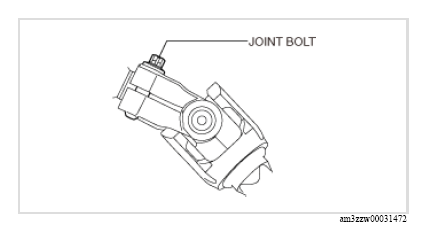

3. Verify that the joint bolt flange is seated correctly.

Courtesy of MAZDA MOTORS CORP.
