Steering Gear and Linkage Installation Bolt Installation Note
Steering Gear and Linkage Installation Bolt Installation Note

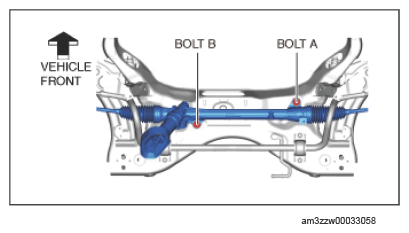

Temporarily tighten the steering gear and linkage installation bolts.
Courtesy of MAZDA MOTORS CORP.
Tighten bolt A.
Tighten bolt B.
Courtesy of MAZDA MOTORS CORP.
