Boot Band Disassembly Note

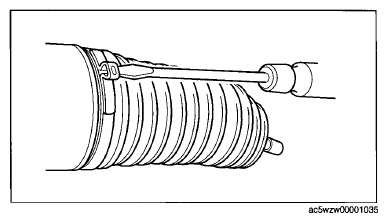

  1. Insert a flathead screwdriver into the crimped part of the boot clamp, expand the crimped part, and then remove the boot clamp as shown in the figure.
G09075691Courtesy of MAZDA MOTORS CORP.
