Steering Gear And Linkage Assembly [(Us)]: Notes
Special service tool (SST)
| 49 JP02 001 Adjustable wrench |
49 T025 001 Boot clamp crimpers |
Replacement part
| Boot band Quantity: 2 Location of use: Boot |
Oil and chemical type
| Grease (Tie rod) Type: Molywhite |
Grease (Dust cover) Type: Maintenance parts |
CAUTION:
- If using a vise, secure the steering gear to the vise using a copper plate or cloth to prevent steering gear damage.
- Assemble in the order shown in the figure.
- Install the steering gear and linkage to the front crossmember component. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [(US)] .)

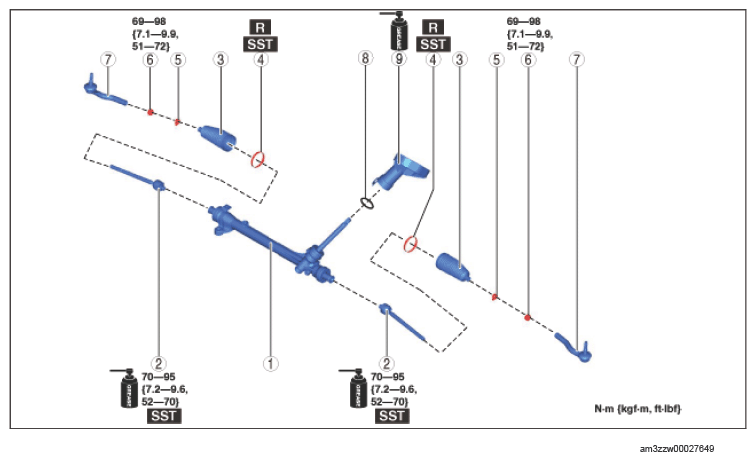

PART DESCRIPTION
| Component. No | Refer to |
|---|---|
| 1 | Steering gear |
| 2 | Tie rod (See Tie Rod Assembly Note .) |
| 3 | Boot |
| 4 | Boot band (See Boot Band Assembly Note .) |
| 5 | Boot clamp |
| 6 | Locknut |
| 7 | Tie-rod end (See Tie-rod End Assembly Note .) |
| 8 | O-ring |
| 9 | Dust cover (See Dust Cover Assembly Note .) |
