High-Mount Brake Light Removal/Installation: Sedan-4SD

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing the high-mount brake light, the procedure can be facilitated by folding down the rear seat.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the c-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  5. Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION .)
  6. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
  7. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)

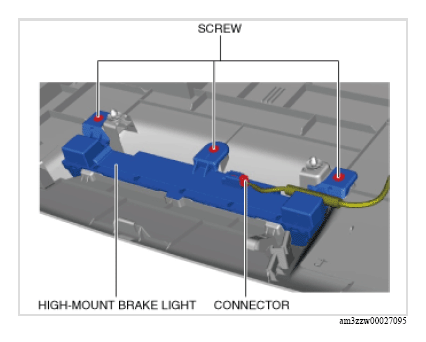

  8. Remove the connector.
  9. Remove the screws.
    G13179610Courtesy of MAZDA MOTORS CORP.

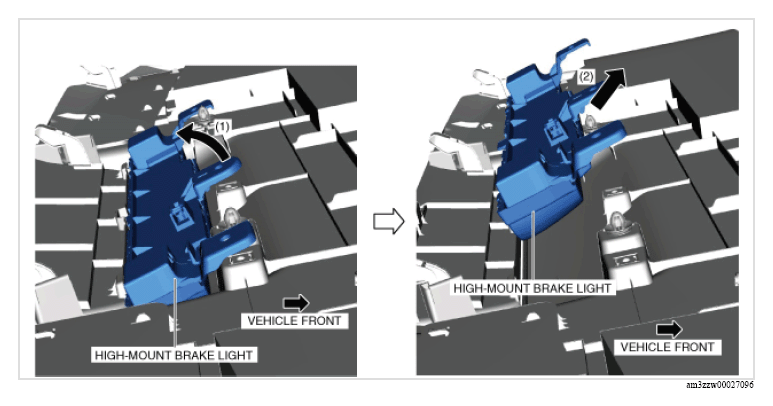

  10. While lift up the high-mount brake light in the direction of arrow (1) shown in the figure, pull out the high-mount brake light in the direction of arrow (2) shown in the figure.
    G13179611Courtesy of MAZDA MOTORS CORP.
  11. Remove the high-mount brake light.
  12. Install in the reverse order of removal.
