High-Mount Brake Light Removal/Installation: Hatchback-5HB

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
  4. Remove the screws.

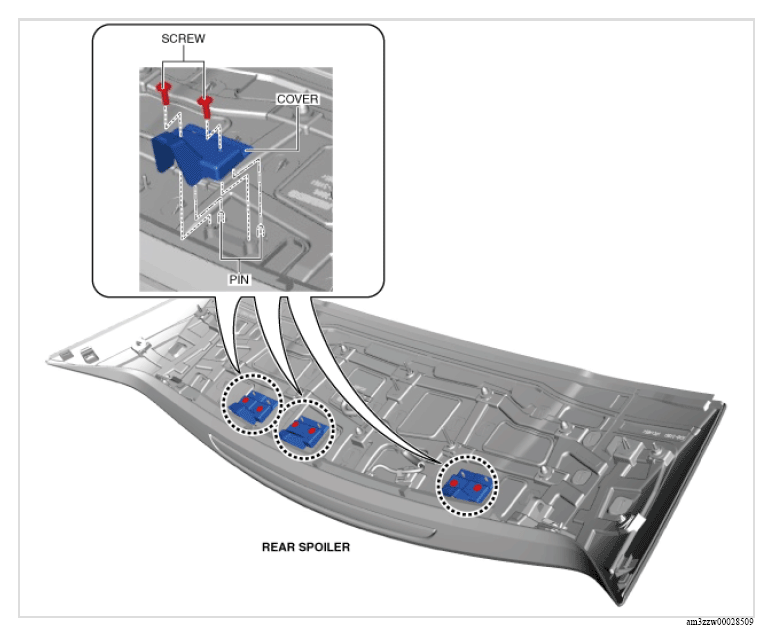

    G13179612Courtesy of MAZDA MOTORS CORP.
  5. Remove the cover.
  6. Remove the clip.
    G13179613Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the connector.

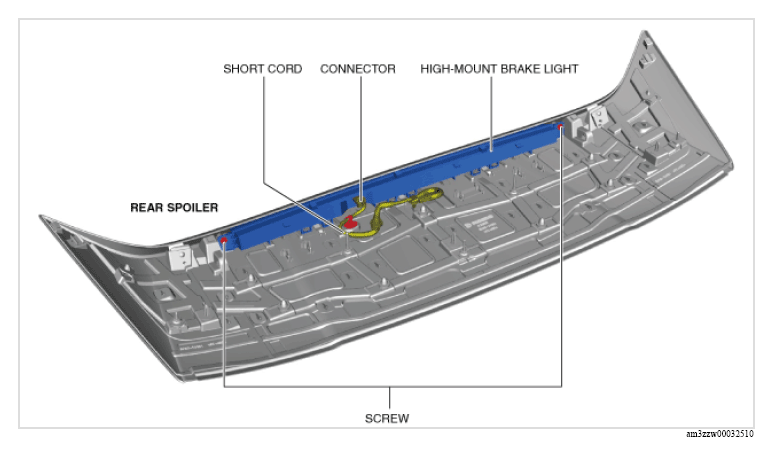

    G13179614Courtesy of MAZDA MOTORS CORP.
  8. Remove the short cord.
  9. Remove the screws.
  10. Remove the high-mount brake light.
  11. Install in the reverse order of removal.
