Joint Cover Installation Note
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble the boss of the joint cover to the stud bolt on the vehicle side.
 Courtesy of MACK TRUCKS, INC.
|

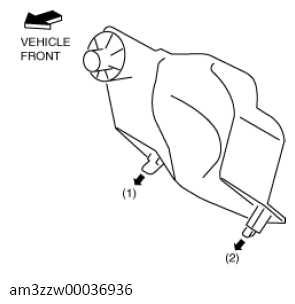

- Engage the tabs in the order of arrows (1) and (2) shown in the figure.
 Courtesy of MACK TRUCKS, INC.
|
