Front Suspension Location Index
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

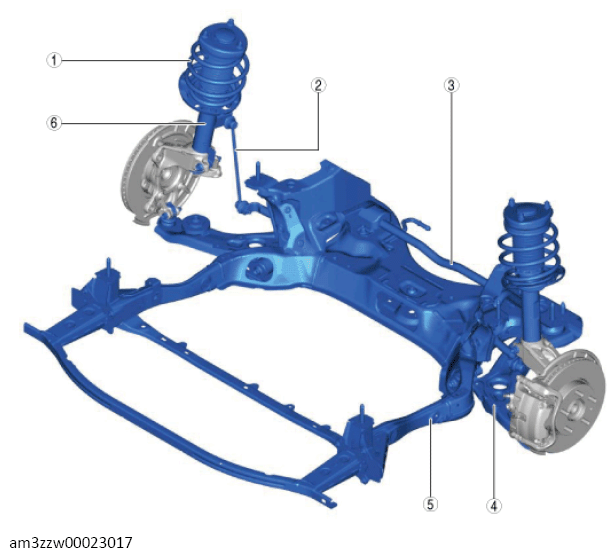

PART DESCRIPTION
| 1 | Front shock absorber and coil spring (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .) (See FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY (US) .) |
| 2 | Front stabilizer control link (See FRONT STABILIZER REMOVAL (US) .) (See FRONT STABILIZER INSTALLATION (US) .) (See FRONT STABILIZER CONTROL LINK INSPECTION .) |
| 3 | Front stabilizer (See FRONT STABILIZER REMOVAL (US) .) (See FRONT STABILIZER INSTALLATION (US) .) |
| 4 | Front lower arm (See FRONT LOWER ARM REMOVAL/INSTALLATION (US) .) (See FRONT LOWER ARM INSPECTION .) |
| 5 | Front crossmember (See FRONT CROSSMEMBER REMOVAL/INSTALLATION (US) .) |
| 6 | Front shock absorber (See FRONT SHOCK ABSORBER INSPECTION .) (See FRONT SHOCK ABSORBER DISPOSAL .) |
