Front Lower Arm Ball Joint Installation Note

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

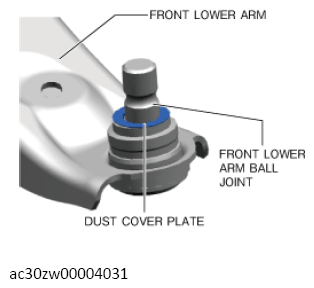

If any problem such as deformation is found with the dust cover plate, replace the front lower arm component with a new one. Otherwise, an operation malfunction or rust may occur inside the ball joint due to foreign matter or water infiltration or another cause, leading to damage of the ball joint. (Without ball joint cover)

Courtesy of MAZDA MOTORS CORP.

NOTE:

When replacing the front lower arm component on a vehicle equipped with a ball joint cover, do not install the ball joint cover. (With ball joint cover)

Insert the bolt from the front of the vehicle and tighten the nut to the specified torque.
