Front Brake Disc Pad Removal/Installation (Us): Notes
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
| Spring | Wear indicator |
| Quantity: 2 | Quantity: 1 |
| Location of use: Disc pad | Location of use: Disc pad |
Oil and Chemical Type
| Brake grease (Brown-gray) | Brake grease (White) |
| Type: PLASTILUBE | Type: KLUBER |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

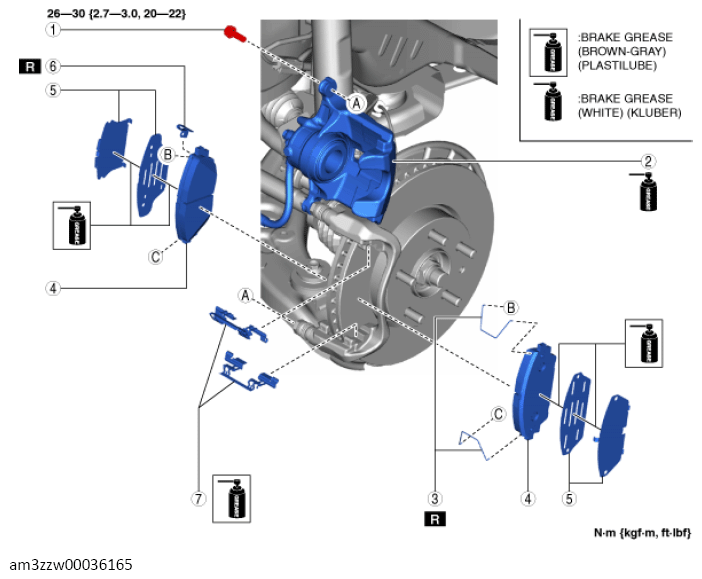

PART DESCRIPTION
| 1 | Bolt |
| 2 | Front brake caliper (See FRONT BRAKE CALIPER INSTALLATION NOTE .) |
| 3 | Spring (if equipped) |
| 4 | Disc pad |
| 5 | Shim |
| 6 | Wear indicator |
| 7 | Guide plate (See GUIDE PLATE INSTALLATION NOTE .) |
