Trunk Lid Weatherstrip Installation Note
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

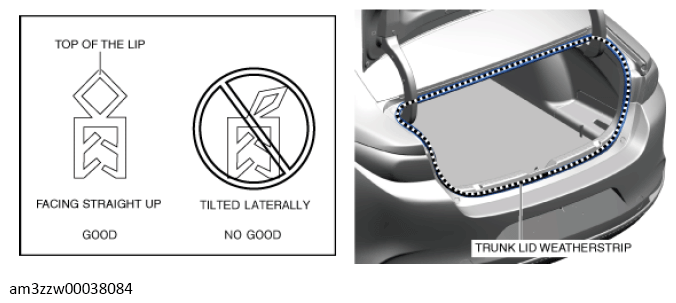

- Verify that the top of the lip of the trunk lid weatherstrip around the entire perimeter is facing straight up.
 Courtesy of MAZDA MOTORS CORP.
|

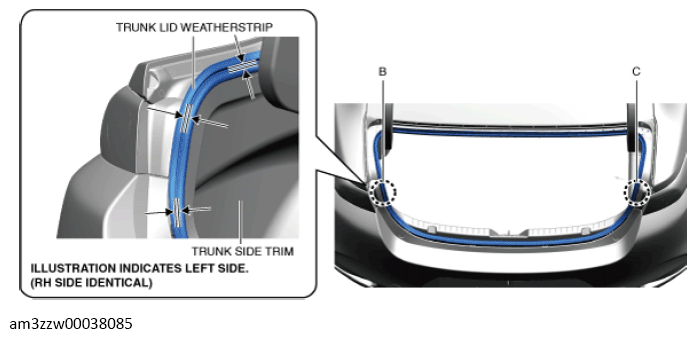

- Verify that the grooves (depressions) of the trunk lid weatherstrip on areas B and C are even.
 Courtesy of MAZDA MOTORS CORP.
|
