Rear Emblem: Notes

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the installation work for the emblem is performed without cleaning and degreasing the emblem installation surface, the emblem could fall off after installation. Before installing the emblem, clean and degrease the emblem and the emblem installation area.

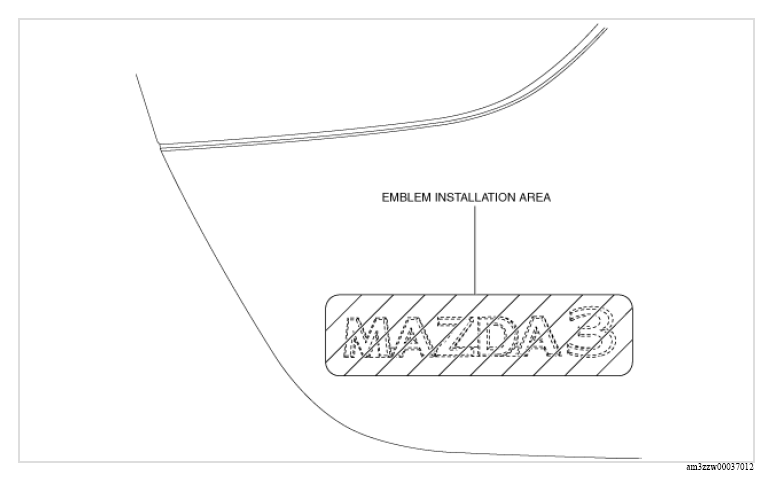

Degrease the adhesion area of the emblem.
Warm the emblem installation area to between 15°C {59°F} and 40°C {104°F} using a heat gun.

Courtesy of MAZDA MOTORS CORP.
Install the emblem to the position shown in the figure.

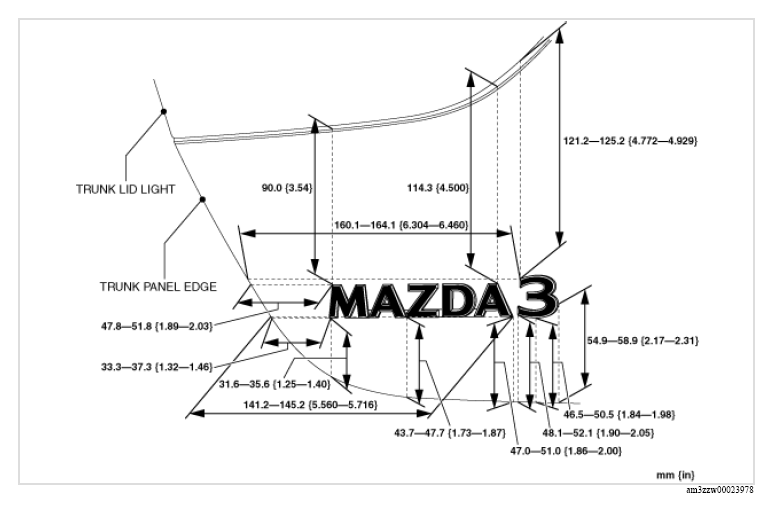

Rear model name emblem (Sedan-4SD)

Courtesy of MAZDA MOTORS CORP.

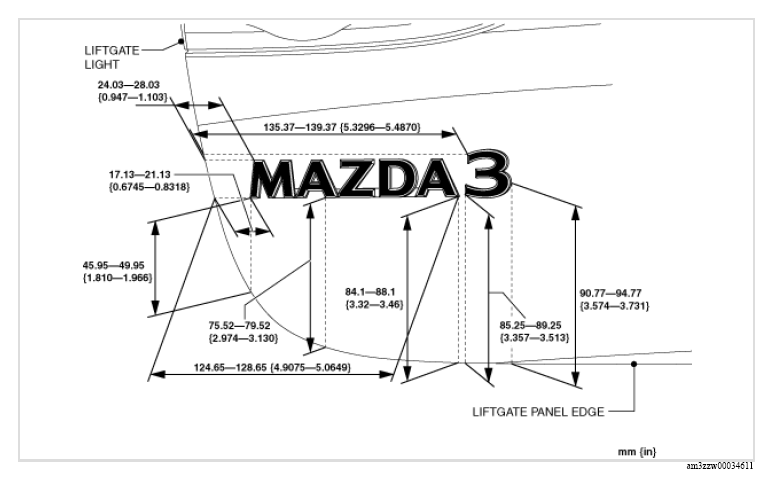

Rear model name emblem (Hatchback-5HB)

Courtesy of MAZDA MOTORS CORP.

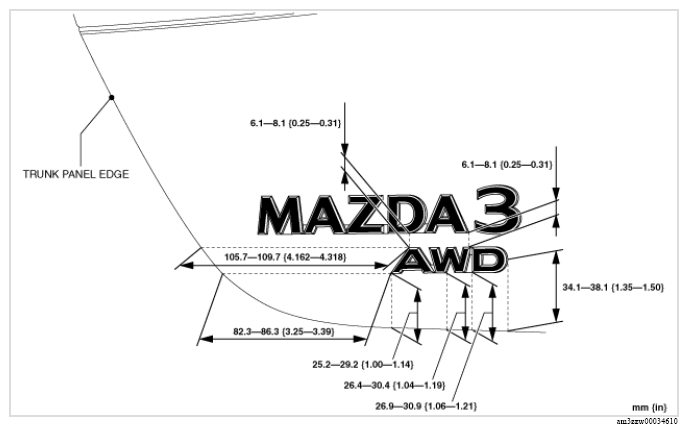

Rear AWD emblem (Sedan-4SD)

Courtesy of MAZDA MOTORS CORP.

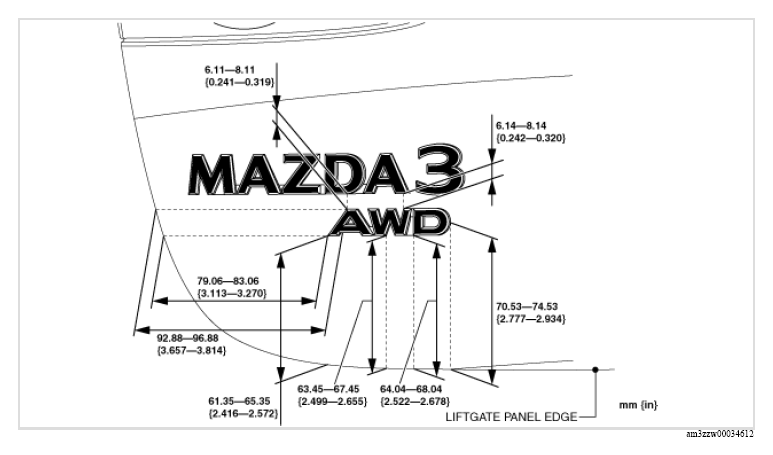

Rear AWD emblem (Hatchback-5HB)

Courtesy of MAZDA MOTORS CORP.

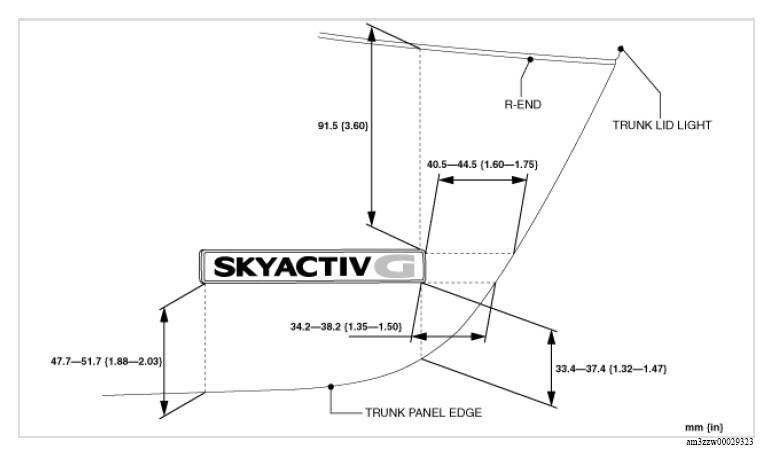

Rear SKYACTIV emblem (Sedan-4SD)

Courtesy of MAZDA MOTORS CORP.

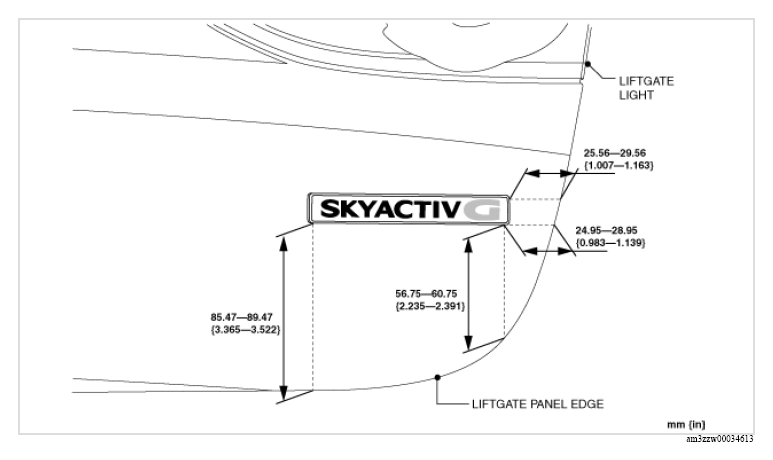

Rear SKYACTIV emblem (Hatchback-5HB)

Courtesy of MAZDA MOTORS CORP.
Press the emblem with a force of 49 N {5.0 kgf, 11 lbf} or more so that the clearance between the emblem and the adhesion area of the emblem is 1.1 mm {0.043 in} or less.
