Rear Deflector

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

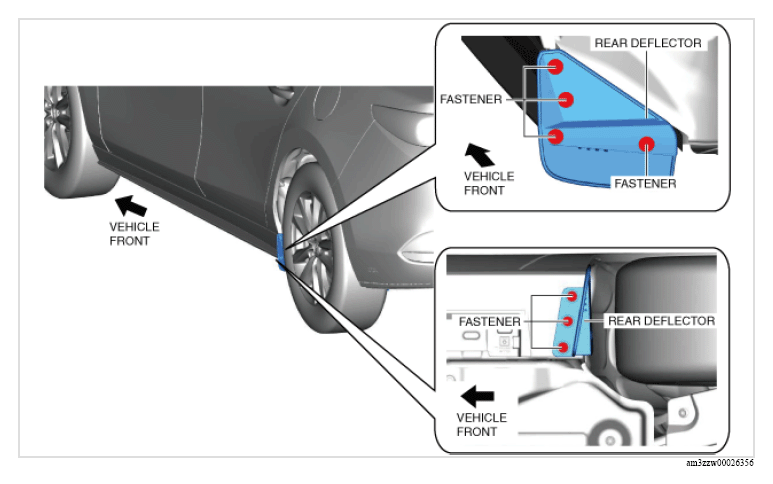

  1. Remove the fasteners.
    G13179229Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear deflector.
  3. Install in the reverse order of removal.
