Washer Motor Removal/Installation
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the deflector (RH). (See DEFLECTOR REMOVAL/INSTALLATION .)
- Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)

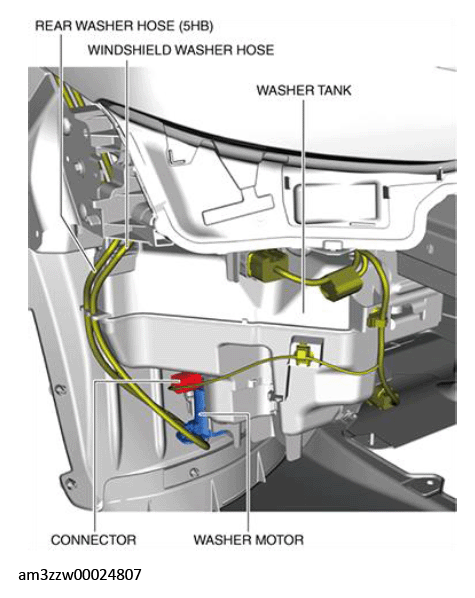

- Disconnect the connector.
- Disconnect the washer hose from the washer motor.

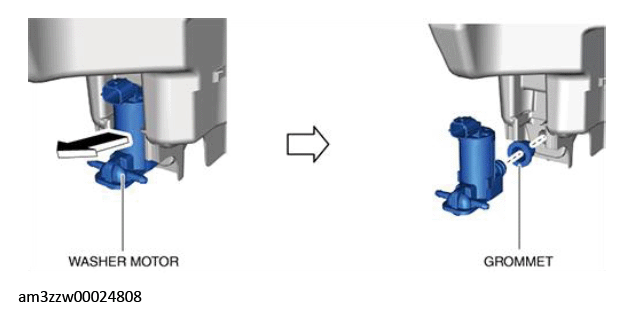

- Remove the washer motor in the direction of arrow shown in the figure.
- Remove the grommet.
- Install in the reverse order of removal.
